Matt Finnie
New Member
Hi all, i have been working to get my auto pilot working on the 67 Imperial however, i have had no luck, i have rewired it to she shop manual and tested the power swich and brake switch both work fine, i have tested my rewire and i get power to all that i should when i should under the hood. i have had problems with my drive unit, upon disassembly i found a broken gear, the motor had a burned out coil, and the switch and relay contacts had burnt out causing the plastic housing to melt a little. i have repaired the gear, rewound the motor and repaired the switch and relay housing and contacts, all of these work perfectly now, the thing i am now stuck on is the internal wiring of the unit, does anyone know of a repair manual or have any pictures of a unit with the cover off?
any help will be hugely appreciated

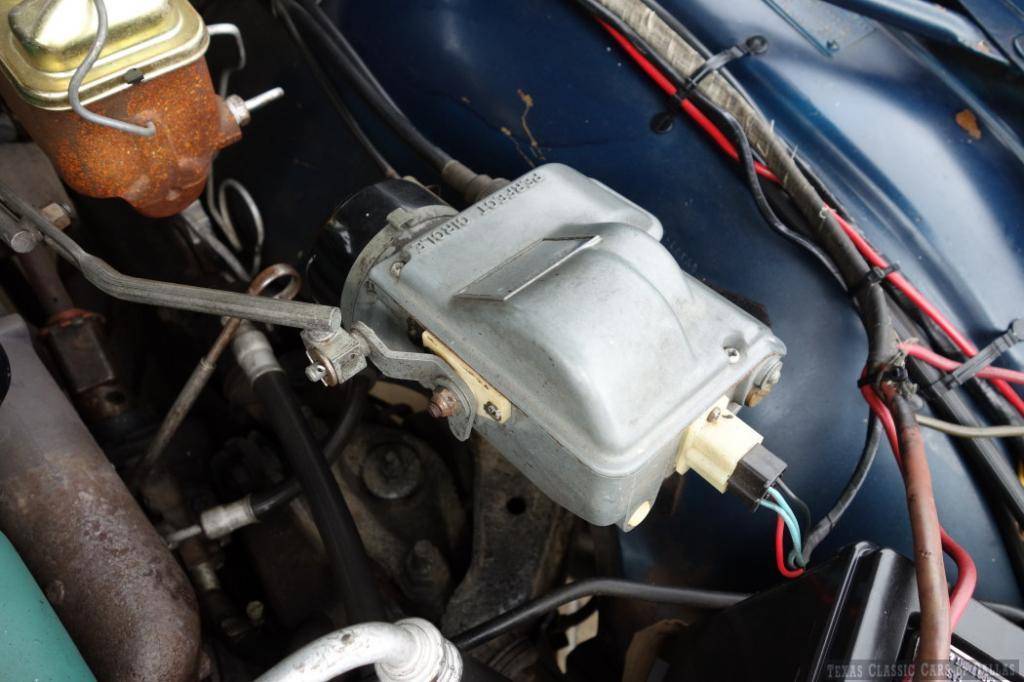

attached is a picture of the type of unit i have.
many thanks
Matt
any help will be hugely appreciated
attached is a picture of the type of unit i have.
many thanks
Matt
