Bulkhead connector

dplotkin

New Member
Joined
Dec 3, 2017
Messages
41
Reaction score
91
Location
New England
I have an intermittent in the parking and stop lamp circuits through the firewall bulkhead connector. Any tips on separating the connector halves at the firewall without breaking anything?

Dan (68 New Yorker)


Big_John

Illegitimi non carborundum
FCBO Gold Member
Joined
May 21, 2013
Messages
16,113
Reaction score
21,874
Location
Marcellus, NY
Just be careful with the clips around the outside. A thin screwdriver or small putty knife might help to pry the clips up slightly. Then just wiggle and pull.

My weapon of choice for cleaning the connectors is Deoxit.


CBODY67

Old Man with a Hat
Joined
Mar 27, 2011
Messages
7,760
Reaction score
4,856
IF there might be a thin layer of spray undercoat/sealer along the outside seams, where the two halves meet, cut through it with a sharp knife, carefully, before trying to separate the two halves, for good measure. Plus what @Big_John mentioned.


John Kirby

Active Member
Joined
Jun 3, 2016
Messages
282
Reaction score
147
Location
Minneapolis , Mn
Once apart a small brass brush to clean the terminals. But I suspect they are needing replacement. Some dielectrc grease on them during reinstall will help prolong their life.


dplotkin

New Member
Joined
Dec 3, 2017
Messages
41
Reaction score
91
Location
New England
On a separate thread I outlined how I found and fixed it. It was a combination of burned and too small a conductor feeding the instrument, parking & stop lights hidden under the bundle on the back side of the fuse block. The headlight intermittent was the bulkhead corrosion.

Dan

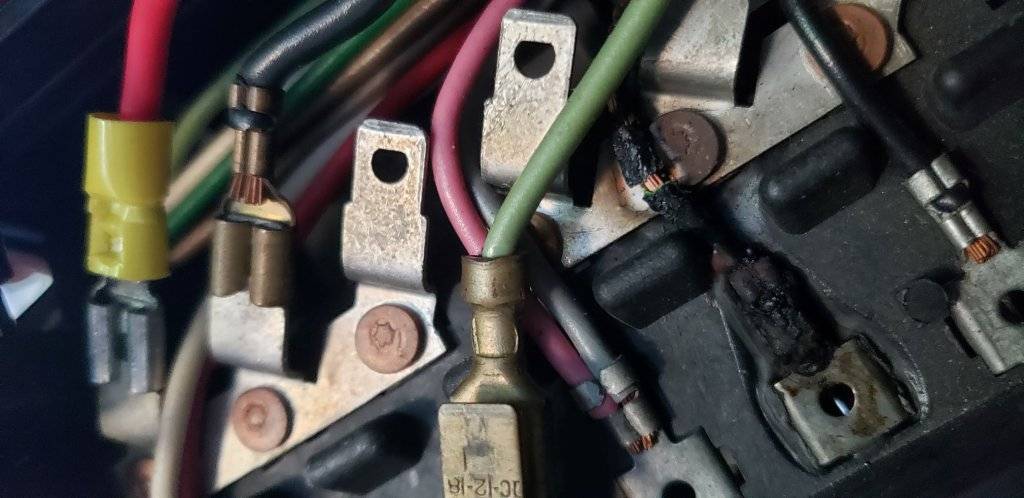

Chrysler New Yorker Fuse panel.jpg

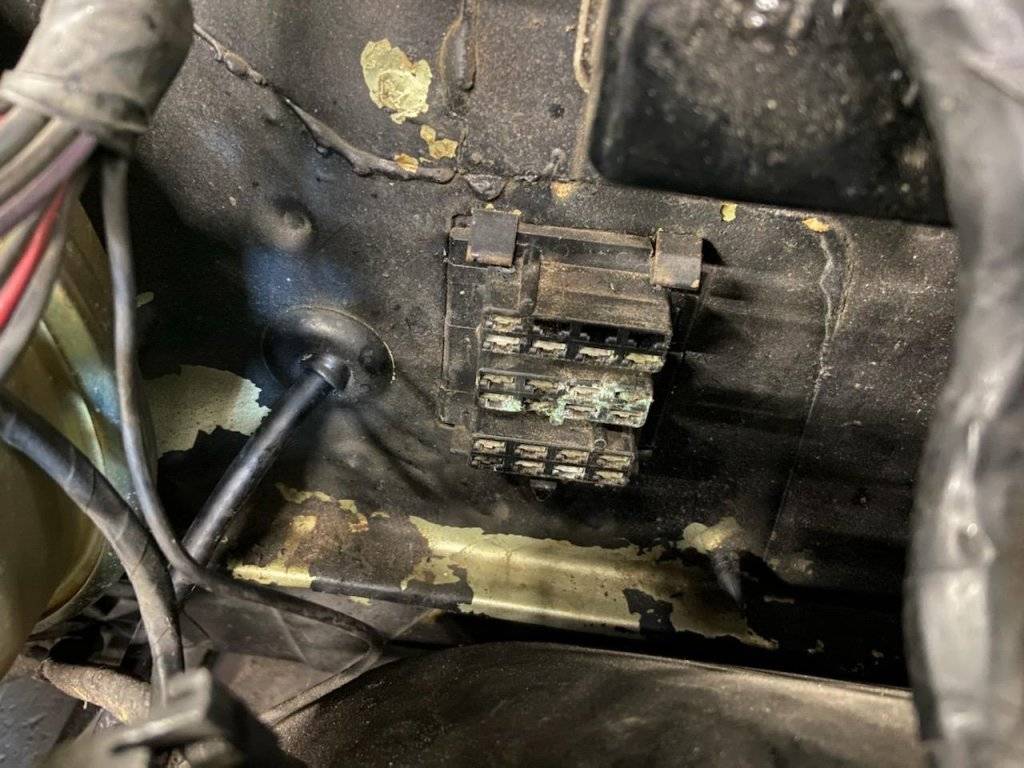

Chrysler New Yorker bulkhead connector 2.jpeg

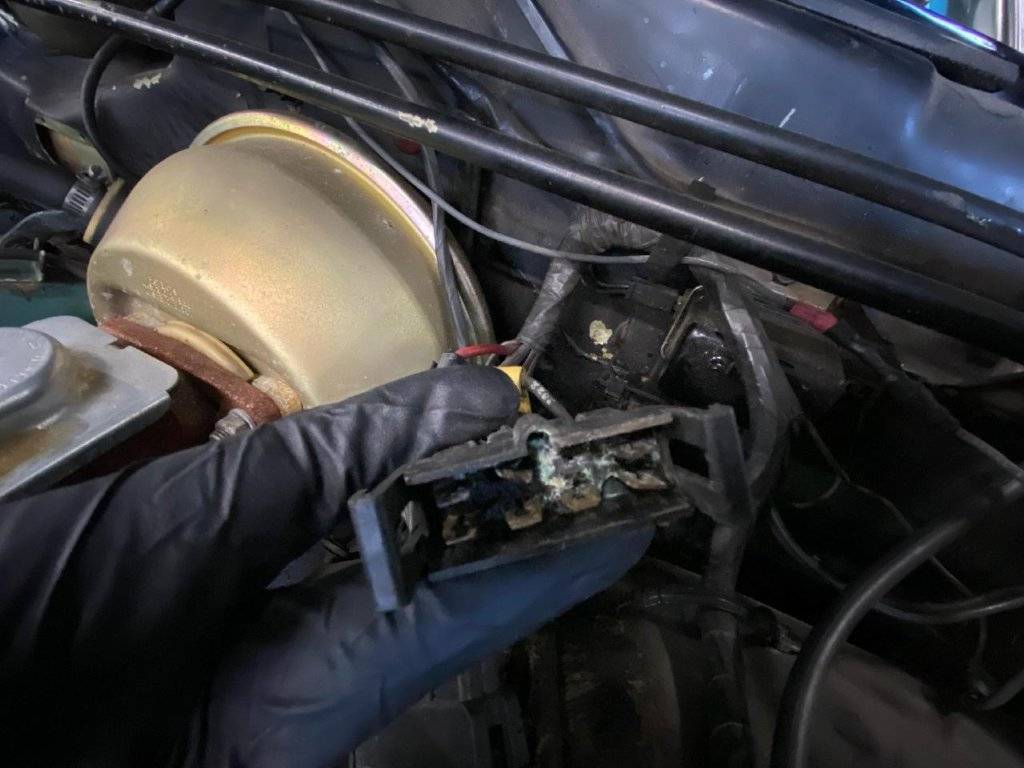

Chrysler New Yorker bulkhead connector 1.jpeg


John Kirby

Active Member
Joined
Jun 3, 2016
Messages
282
Reaction score
147
Location
Minneapolis , Mn
That connector needs a rewire. If the housing isn't damaged, clean it up after removing the terminals and reuse it, otherwise I have seen them on ebay. The terminals can be removed with long nose pliers, gently squeeze the wide end while pulling on the wire from the back side. Write down what color goes in each location for reference. terminals are available on ebay and at delcity.net. I use this with heat shrink tubing: from ebay

300 PCS ASSORTED UNINSULATED BUTT CONNECTORS WIRE SPLICE ALL SIZES 22-10 GA USA​

A micro butane torch makes quick reliable connections when you solder them. Or you can do a complete rewire of the affected circuits. A soldering iron will help with soldering the terminals. Makes them 100% reliable, no plumbing solder, electronic only. preferably 63/37 lead/tin.

The firewall side is a bigger challenge. You will need to get the entire connector out of the firewall. The metal clips at the top and bottom will allow this. Once out the bad terminals can be removed with a small flat blade jewelers screwdriver. There is a small hole above the terminal on the engine side. Stick the screwdriver in and give it a gentle twist while tugging on the wire from the back side. R&R one terminal at a time to not get them mixed up. You're working under the dash so this part isn't easy.

Pay attention to wire size when doing this. Larger is ok, smaller is not.
