Electrical problems

monaco

Member
Joined
Aug 24, 2014
Messages
77
Reaction score
3
Location
ontario
1 have a 1966 monaco and cant get the brake lights,turn signals and front driving/turn signals to work properly. I have replaced the turn signal switch,the reverse light switch. Cleaned all connections front to back. Replaced the bulkhead connector.
What's happening is, when I hit the brakes the pass side brake 1/4 panel comes on with the driver side trunk lid light. Same when I turn the right side turn signal on they both flash. When I turn the left side turn signal on they all flash but very dim. I got the right side front indicator to flash but the left just stays on. On the instrument panel,they both flash but the left seems weaker. I've tried everything but clean the fuse connections and ground all light sockets straight to the battery which is my next job.
Any input would be appreciated.
Getting frustrated.


jollyjoker

Active Member
FCBO Gold Member
Joined
Nov 15, 2016
Messages
338
Reaction score
340
Location
Ohio
Do you have the FSM wiring diagram? Might look for a blown in-line fuse somewhere. I spent hours trying to track down some really weird electrical gremlins (65 Dodge). Finally, after looking at the diagram for the 100th time, I realized there was another fuse in the circuit (mine was ~6 inches off the fuse block, IIRC). When it blows, all the electrons go looking for (multiple) strange places to flow. Good luck . . . !


Big_John

Illegitimi non carborundum
FCBO Gold Member
Joined
May 21, 2013
Messages
16,593
Reaction score
22,726
Location
Marcellus, NY
Ground problem. No doubt.

Jumper wire with alligator clips from good ground to light housings will prove it easily enough.


monaco

Member
Joined
Aug 24, 2014
Messages
77
Reaction score
3
Location
ontario
Ground problem. No doubt.

Jumper wire with alligator clips from good ground to light housings will prove it easily enough.
Tried that. Nothing. I may try grounding all light sockets straight to the battery


monaco

Member
Joined
Aug 24, 2014
Messages
77
Reaction score
3
Location
ontario
Do you have the FSM wiring diagram? Might look for a blown in-line fuse somewhere. I spent hours trying to track down some really weird electrical gremlins (65 Dodge). Finally, after looking at the diagram for the 100th time, I realized there was another fuse in the circuit (mine was ~6 inches off the fuse block, IIRC). When it blows, all the electrons go looking for (multiple) strange places to flow. Good luck . . . !
Do you have the FSM wiring diagram? Might look for a blown in-line fuse somewhere. I spent hours trying to track down some really weird electrical gremlins (65 Dodge). Finally, after looking at the diagram for the 100th time, I realized there was another fuse in the circuit (mine was ~6 inches off the fuse block, IIRC). When it blows, all the electrons go looking for (multiple) strange places to flow. Good luck . . . !
Do you have the FSM wiring diagram? Might look for a blown in-line fuse somewhere. I spent hours trying to track down some really weird electrical gremlins (65 Dodge). Finally, after looking at the diagram for the 100th time, I realized there was another fuse in the circuit (mine was ~6 inches off the fuse block, IIRC). When it blows, all the electrons go looking for (multiple) strange places to flow. Good luck . . . !
Do you have the FSM wiring diagram? Might look for a blown in-line fuse somewhere. I spent hours trying to track down some really weird electrical gremlins (65 Dodge). Finally, after looking at the diagram for the 100th time, I realized there was another fuse in the circuit (mine was ~6 inches off the fuse block, IIRC). When it blows, all the electrons go looking for (multiple) strange places to flow. Good luck . . . !

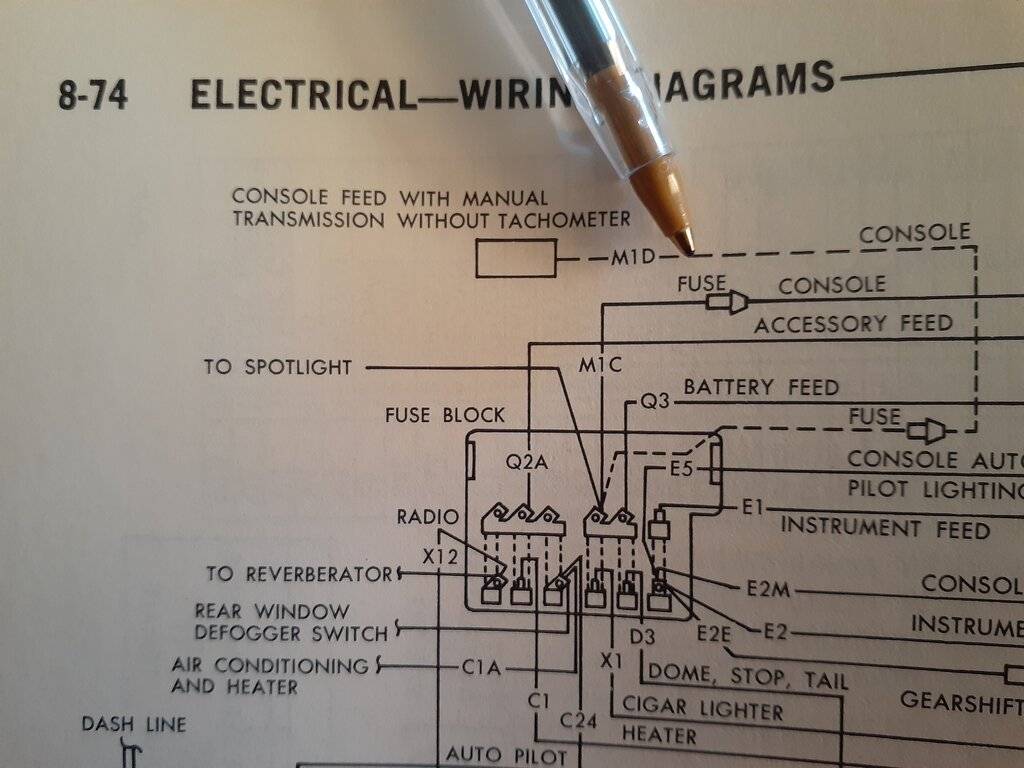

I don't see any inline fuses in the wiring diagram.


jollyjoker

Active Member
FCBO Gold Member
Joined
Nov 15, 2016
Messages
338
Reaction score
340
Location
Ohio


jollyjoker

Active Member
FCBO Gold Member
Joined
Nov 15, 2016
Messages
338
Reaction score
340
Location
Ohio
Don't know . . .probably need to be an EE to figure it out. IIRC, my C-pillar interior lights and something else (I forget) would go funky, but would go back to normal if I pushed in the rear console cigar lighter. Go figure . . . I know that the blown fuse was letting something back-feed, but exactly where, what, or how - I have no idea. And remember, you have 6 tail lights in your circuit - I only had 2 - so your electricals (once you get out of the dash) are going to be a little different


monaco

Member
Joined
Aug 24, 2014
Messages
77
Reaction score
3
Location
ontario
Don't know . . .probably need to be an EE to figure it out. IIRC, my C-pillar interior lights and something else (I forget) would go funky, but would go back to normal if I pushed in the rear console cigar lighter. Go figure . . . I know that the blown fuse was letting something back-feed, but exactly where, what, or how - I have no idea. And remember, you have 6 tail lights in your circuit - I only had 2 - so your electricals (once you get out of the dash) are going to be a little different

I changed the fuse, no change. I think I'm going to have to rip the whole wiring harness out and go through it.


bigmoparjeff

Senior Member
Joined
Aug 9, 2017
Messages
2,524
Reaction score
3,360
Location
Dublin, PA
I would unplug the rear harness connector behind the left kick panel and see if you have voltage on the correct wires at the connector.

Bad at the connector = problem under the dash/turn switch

Good at the connector = problem in the rear harness

Check it with a test light, not a meter.

Jeff


monaco

Member
Joined
Aug 24, 2014
Messages
77
Reaction score
3
Location
ontario
I would unplug the rear harness connector behind the left kick panel and see if you have voltage on the correct wires at the connector.

Bad at the connector = problem under the dash/turn switch

Good at the connector = problem in the rear harness

Check it with a test light, not a meter.

Jeff
Ok. Thanks


ike61

New Member
Joined
Dec 6, 2010
Messages
26
Reaction score
10
Each one of those 1/4 head screws holding the circuit board on the back of the instrument cluster is a ground. Take each one off and clean underneath with some emery cloth. One of these caused all kinds of problems in my coronet


Mike McGuire

Active Member
FCBO Gold Member
Joined
Aug 1, 2016
Messages
249
Reaction score
66
Location
new hampshire
Just changed plug wires on my 66 Sport Fury 383 w/gm style hei distributor. Went to start and no power at all, no lights, crank, nothing. Any help appreciated

It's been a month + since your last post, how'd you make out?
If jumping the starting solenoid on the fire wall does not result in turning the started motor, inspect/clean the terminal on the solenoid, right next to the starter. It's the small wire.
If you have a good battery, and are jumping the solenoid and the terminal on the solenoid is good, and nothing happens (not even a click), it can only be the solenoid.


tim howe

New Member
Joined
May 2, 2021
Messages
37
Reaction score
10
Location
Andover, Anoka, Minnesota, USA
Thanks for the help, I got it going, it was a small wire off at the firewall that I never noticed. It must have been when I changed the positive battery wire and knocked it or something. It is running good now,brought it to Mopars in the Park last weekend might have to replace thermostat though.
