Fuel pressure regulator recommendation

Engine, Transmission & Driveline

  1. kenfyoozed

    kenfyoozed Member FCBO Gold Member

    Messages:
    126
    Likes Received:
    35
    Joined:
    May 25, 2018
    Location:
    Mobile, AL
    I want to add a fuel pressure regulator to my fuel system. Is there any recommendations of what to run? Or what to avoid?

  2. CBODY67

    CBODY67 Senior Member

    Messages:
    3,674
    Likes Received:
    826
    Joined:
    Mar 27, 2011
    I suspect most will be basically the same unit. Look on the www.holley.com website and others to see what's available. Even www.summitracing.com, for good measure. Then look at price and what it will take to adapt it to the fuel supply system on the car. Most of the ones you'll probably find will be race engine oriented (lots of flow, big lines, etc.). FWIW

    Happy hunting!
    CBODY67

    Last edited: Jul 2, 2019
  3. Davea Lux

    Davea Lux Senior Member FCBO Gold Member

    Messages:
    4,070
    Likes Received:
    1010
    Joined:
    Mar 27, 2017
    Location:
    Cornelius Or
    A mopar does not need a fuel regulator unless you have installed an electric high volume unit. The kind that mount under the hood are just another place to vapor lock.

    Dave

    • Agree Agree x 2
  4. 70bigblockdodge

    70bigblockdodge Old Man with a Hat FCBO Gold Member

    Messages:
    10,968
    Likes Received:
    4312
    Joined:
    Jan 19, 2013
    Location:
    Avonmore Pa.
    You will be hard pressed to get 5.5 psi out of a stock mechanical pump and you do not want to lower it more than that.

  5. kenfyoozed

    kenfyoozed Member FCBO Gold Member

    Messages:
    126
    Likes Received:
    35
    Joined:
    May 25, 2018
    Location:
    Mobile, AL
    I will double check my fuel pressure again. I checked it yesterday and the reading I got was over 9psi. I unhooked the fuel line from the carb, with the bowls full. Plugged my gauge into the end of my fuel line. Started the car and pressure went up to over psi before fuel started squirting out between the line and the push on fittings.

  6. 70bigblockdodge

    70bigblockdodge Old Man with a Hat FCBO Gold Member

    Messages:
    10,968
    Likes Received:
    4312
    Joined:
    Jan 19, 2013
    Location:
    Avonmore Pa.
    Wow, electric pump?
    What brand mechanical?

  7. kenfyoozed

    kenfyoozed Member FCBO Gold Member

    Messages:
    126
    Likes Received:
    35
    Joined:
    May 25, 2018
    Location:
    Mobile, AL
    Its the mechanical pump on the block. Im going to get some fittings and "tee" it in and take a reading that way and see if its any different.

  8. kenfyoozed

    kenfyoozed Member FCBO Gold Member

    Messages:
    126
    Likes Received:
    35
    Joined:
    May 25, 2018
    Location:
    Mobile, AL
    Installed the gauge with a "tee". Started engine and let idle for 1 min. Shut engine down and relieved pressure from the line. Started the engine back up and this is what I got.....



    After running the engine at idle for over 1 min while on the gauge....



    After shutting it down and waiting 10 mins, the pressure in the line had dropped to 5.5psi.

    Thinking the fuel pressure gauge may be in error I then attached a known good pressure gauge with a hand pump that I use to work on the Mikuni carb on my Seadoo to check the pop-off pressure. Testing the fuel pressure gauge this way shows that the fuel pressure gauge is reading a bit low if any discrepancy.

    So the carb has to be running rich. Its only supposed to be supplied with 6 psi. The rest of the pressure has to go somewhere. I think its pushing past the seats and enriching the burn. At shutdown its pushing past the seats and worsening the hard start situation.

    What are your thoughts or am I way off here?

  9. 70bigblockdodge

    70bigblockdodge Old Man with a Hat FCBO Gold Member

    Messages:
    10,968
    Likes Received:
    4312
    Joined:
    Jan 19, 2013
    Location:
    Avonmore Pa.
    With that much pressure it will be running the level high in the float bowls. Causing a rich condition

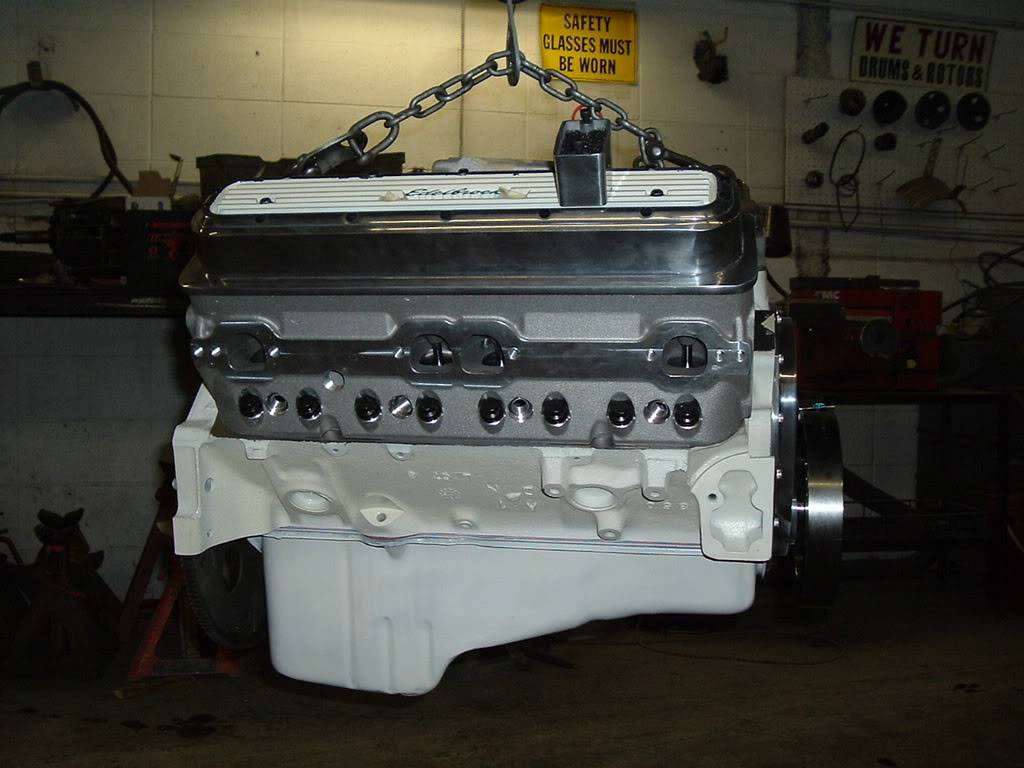

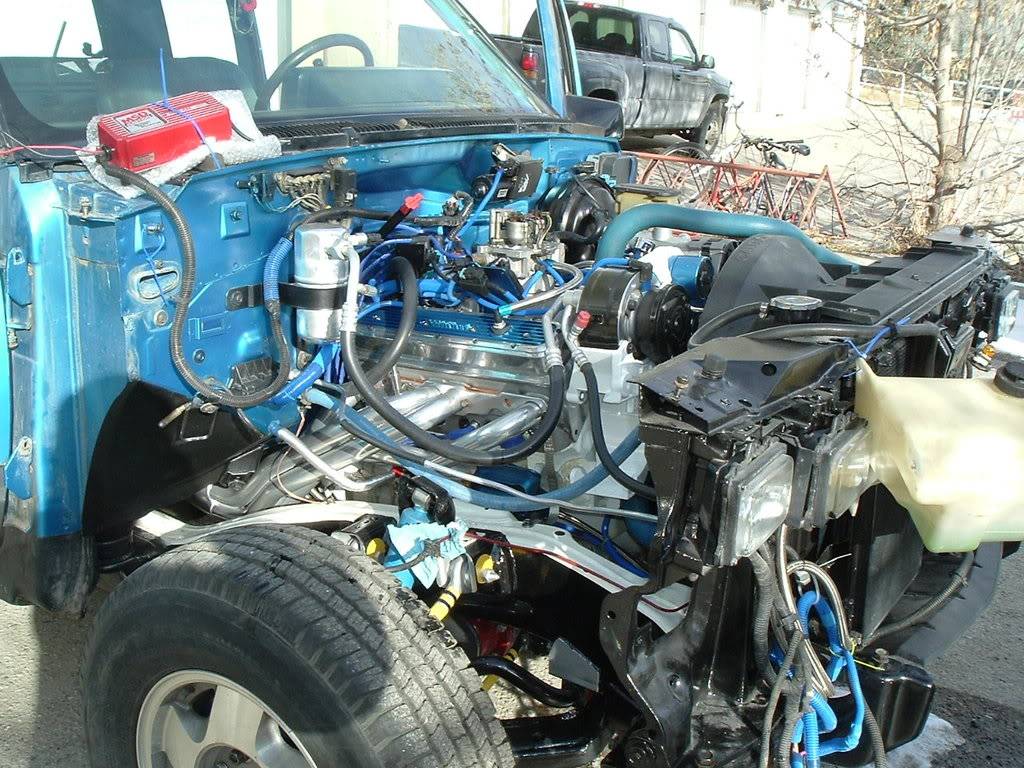

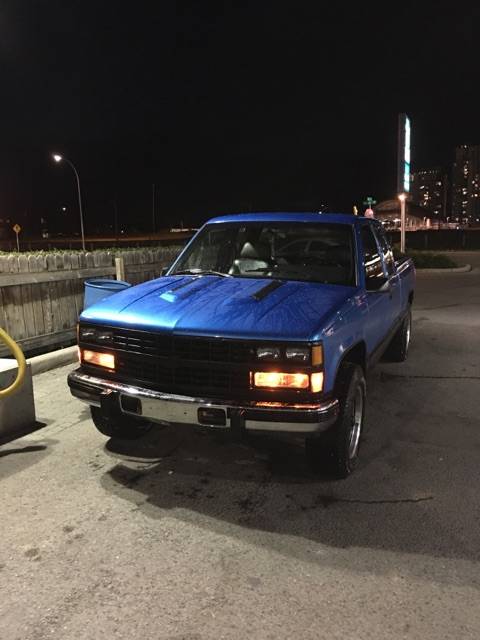

  10. CanCritter

    CanCritter Senior Member

    Messages:
    4,422
    Likes Received:
    3468
    Joined:
    Apr 9, 2014
    Location:
    alberta
    Last edited: Jul 3, 2019
    • Like Like x 1
  11. Fury440

    Fury440 At my age everything's a good idea FCBO Gold Member

    Messages:
    2,490
    Likes Received:
    1866
    Joined:
    Jan 15, 2011
    Location:
    Calgary, Alberta
    Don't know much about regulators except the one sold by Mr Gasket is a piece of leaking crap!!

    • Like Like x 1
  12. kenfyoozed

    kenfyoozed Member FCBO Gold Member

    Messages:
    126
    Likes Received:
    35
    Joined:
    May 25, 2018
    Location:
    Mobile, AL
    Good to know

  13. MEV

    MEV Member

    Messages:
    167
    Likes Received:
    158
    Joined:
    Mar 28, 2015
    Location:
    WA
    Swap the pump. I run this on my 66 newyorker, internally regulated to 6.5 psi, and you can check your fuel pump pushrod length while you are in there

    Holley Mechanical Fuel Pump

    • Agree Agree x 1
  14. kenfyoozed

    kenfyoozed Member FCBO Gold Member

    Messages:
    126
    Likes Received:
    35
    Joined:
    May 25, 2018
    Location:
    Mobile, AL
    I will keep that one in mind. I picked up an edelbrock that has a gauge port and installed a gauge. Ran rubber fuel lines from pump to regulator and then carb with fuel filter between. I plan on hard piping later, but just wanted to get it back on the road ASAP. Got it set about 5.5psi at idle. As of now she starts back up every time. Will take a test drive this evening to test her all out.

    • Like Like x 1
  15. kenfyoozed

    kenfyoozed Member FCBO Gold Member

    Messages:
    126
    Likes Received:
    35
    Joined:
    May 25, 2018
    Location:
    Mobile, AL


    Took her on some errands today. She had ran good other than a few stumbles from the carb. She died once going around a corner. I think my fuel pressure was to low to keep bowls full so adjusted it higher. Let her sit for 2 hrs and then ran the battery dead trying to get her to fire off. Finally had to use some starting fluid to get her to spin over fast enough to fire off. Anyways I noticed the bubbles in the fuel filter. Not sure what’s going on. Also now she seems to not idle as smoothly as she did.

  16. CBODY67

    CBODY67 Senior Member

    Messages:
    3,674
    Likes Received:
    826
    Joined:
    Mar 27, 2011
    Spinning over fast enough has NO bearing on starting. As long as the mechanism in the distributor produces a spark, that's all that's needed at ANY starting speed. I watched as my friend's '69 Daytona barely turned over and started so that he could drive the car onto some ramps for it to be judged at Mopar Nats one year. IF he'd had an electronic system of ANY kind, rather then the points ignition, it would not have started at all. He forgot to put the battery on the charger when he got to the motel, before he went to the track for the judging process. As all control boxes have a minimum voltage at which they'll produce a spark. In the case of the Orange box, that low limit is quite high, by observation . . . watched one spin over way fast enough, but not fire until it had some jumper cables attached to the battery. Then it fired off quickly after that.

    Any fuel which might percolate out of the carb into the intake manifold, usually will "steam" out through the carb when it hits the hot plenum in the intake manifold. Provided, of course, the heat riser is still working and that passage is no blocked off. FWIW

    CBODY67

  17. 70bigblockdodge

    70bigblockdodge Old Man with a Hat FCBO Gold Member

    Messages:
    10,968
    Likes Received:
    4312
    Joined:
    Jan 19, 2013
    Location:
    Avonmore Pa.
    Bubbles in the fuel filter are from sucking air. If the line tank to pump does not leak when shut off it mat be sending unit has holes in it. This problem drove me a little crazy on one of my cars.

    • Like Like x 1
  18. kenfyoozed

    kenfyoozed Member FCBO Gold Member

    Messages:
    126
    Likes Received:
    35
    Joined:
    May 25, 2018
    Location:
    Mobile, AL
    I do have the orange box, and this is what I felt was going on. Need a good battery to keep box going.
