Help on wires

[Bill ward]

Does anyone know where these two wires go. One is red with a gold stripe the other is just plain Red. By looking myself I really couldn't tell where they went wrapped in a bundle. Thanks in advance for any advice.



[Snotty]

Do you have a Service Manual? The electrical diagram will tell you. As for me, I don't know.



[Bill ward]

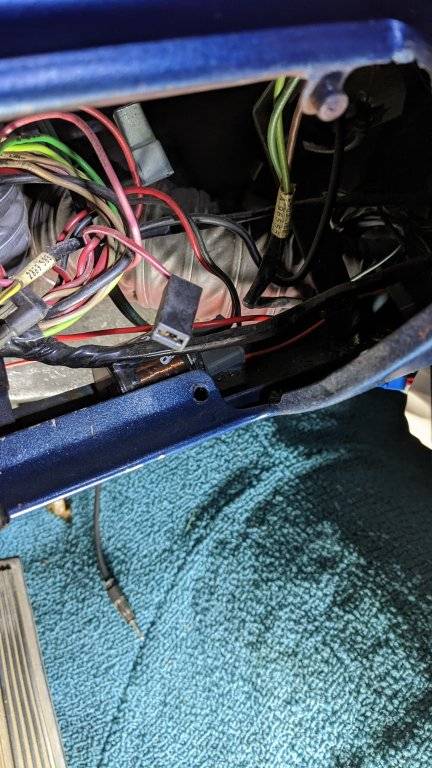

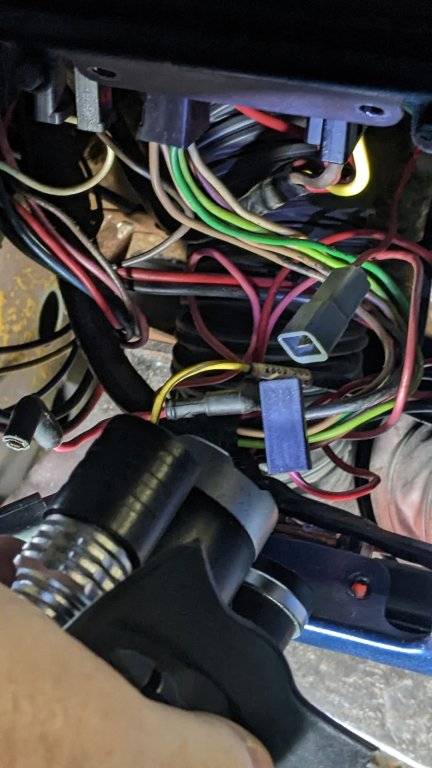

Don't have an electrical diagram but thanks for responding.these are the pics.



[Bill ward]

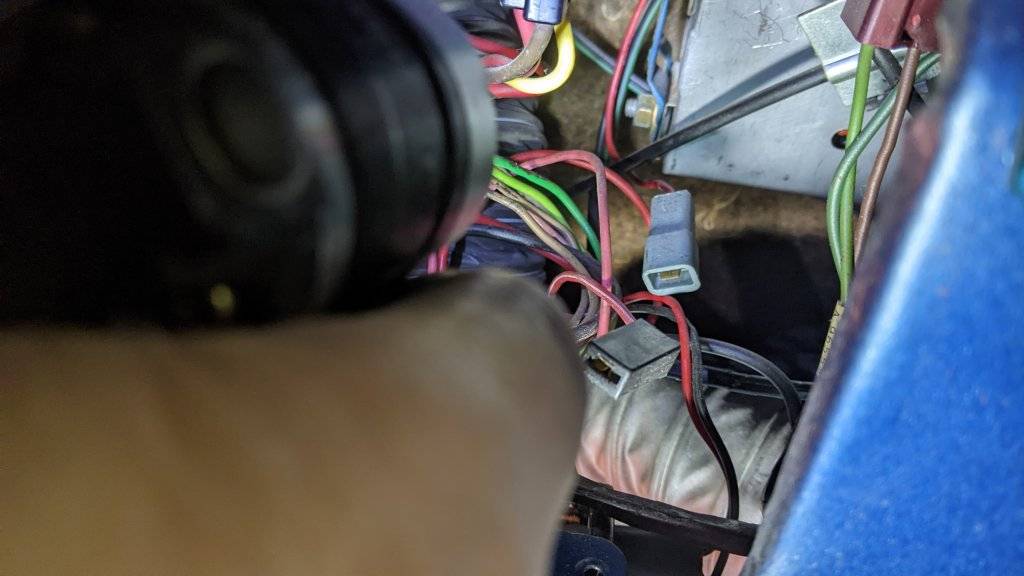

I hate to pull and tug on em to try to figure out what they hook to. Thought may be someone might know.



[MrMoparCHP]

Save yourself the aggravation of having to listen to a bunch of people tell you to look at a wiring diagram, until you make an effort at it most people here will not help.

Go to
MyMopar

at the top go to Service manual Library

Then scroll down to your car and click on it.


Right now we would be guessing as much as you as we don't even know what car you are working on.


Alan



[tbm3fan]

...and then again they might not go to anything in your car if what they went to was an option you don't have.



[Bill ward]

Thank you for responding I will give that a try. And it is possible it may not go to anything.



[MrMoparCHP]

Or they plug together.


Alan



[Big_John]

I figured you have a '68 Fury by your other posts.

So... I looked at the wiring diagram in the FSM and I see a red with a tracer and a red wire. They connect together and the red goes to the radio.

So, if the radio doesn't work, that's the wire you need to connect.



[Big_John]

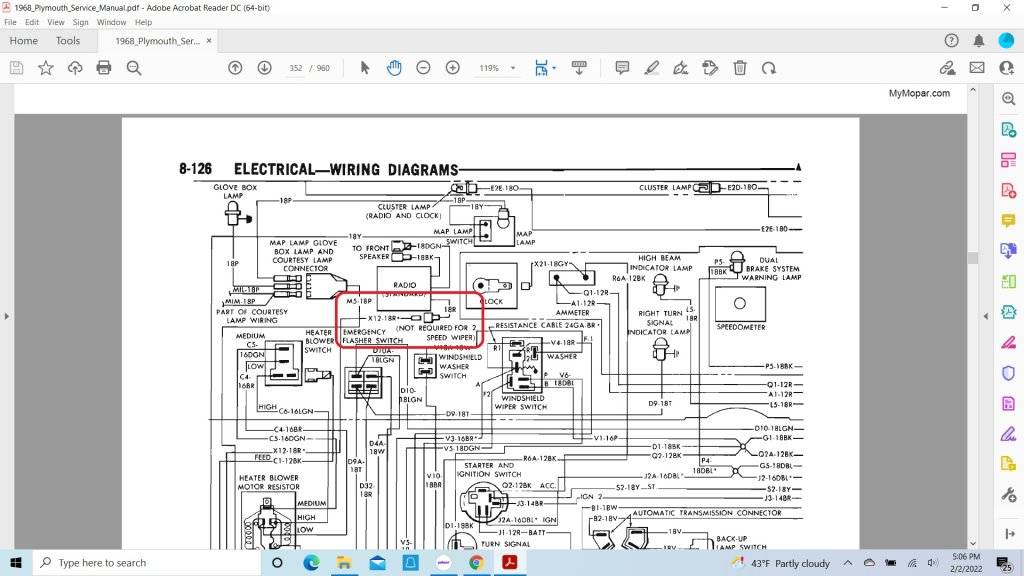

Circled in red.



[Bill ward]

I figured you have a '68 Fury by your other posts.

So... I looked at the wiring diagram in the FSM and I see a red with a tracer and a red wire. They connect together and the red goes to the radio.

So, if the radio doesn't work, that's the wire you need to connect.

Thank you ,no my radio has never worked it may now . I really appreciate the info.



[xxcarguy]

Plug them together and let us know!
More pics of the entire car please.



[Bill ward]

Just a few more pics to share as requested..



[xxcarguy]

Nice
How about the interior.



[Bill ward]

Nice
How about the interior.

Actually I don't have any of the interior, but I'll take some and send em out.



[xxcarguy]

Nice looking car!
