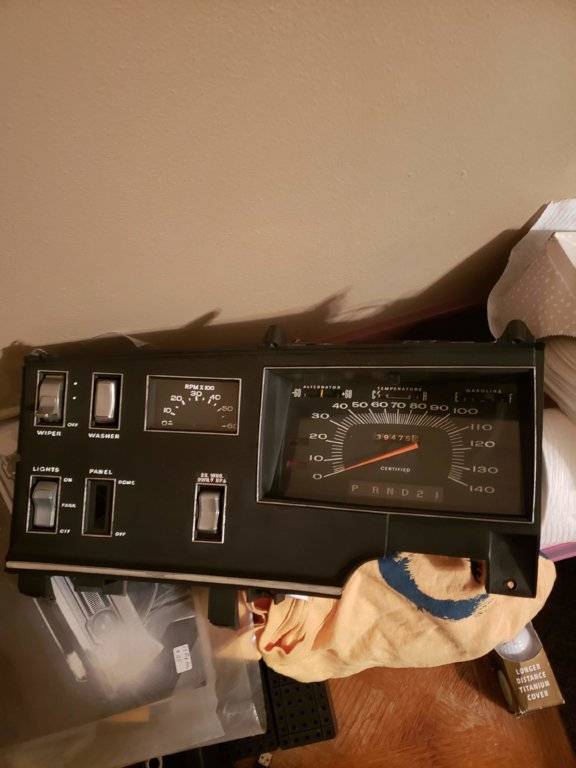

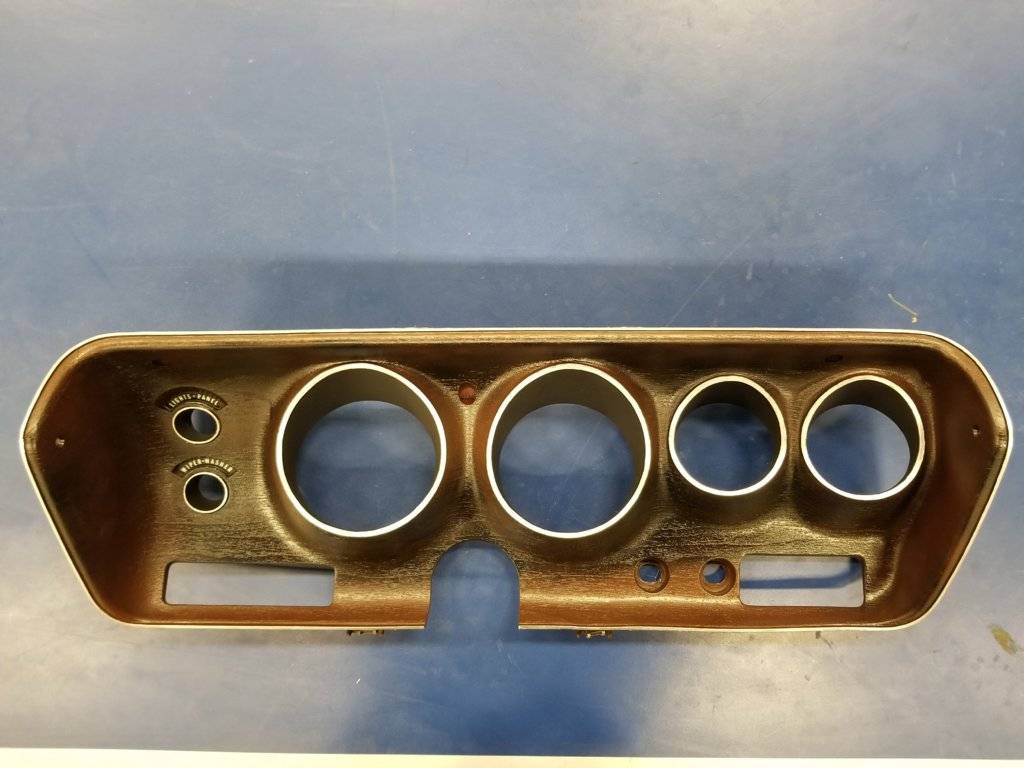

I finished building my 69 fury dash Tach today

Restoration

  1. Welder guy

    Welder guy Old Man with a Hat FCBO Gold Member

    Messages:
    5,190
    Likes Received:
    6059
    Joined:
    Dec 30, 2016
    Location:
    Millet Alberta

  2. Welder guy

    Welder guy Old Man with a Hat FCBO Gold Member

    Messages:
    5,190
    Likes Received:
    6059
    Joined:
    Dec 30, 2016
    Location:
    Millet Alberta
    Here is his video to install the dash pad.

    • Thanks! Thanks! x 1
  3. Welder guy

    Welder guy Old Man with a Hat FCBO Gold Member

    Messages:
    5,190
    Likes Received:
    6059
    Joined:
    Dec 30, 2016
    Location:
    Millet Alberta

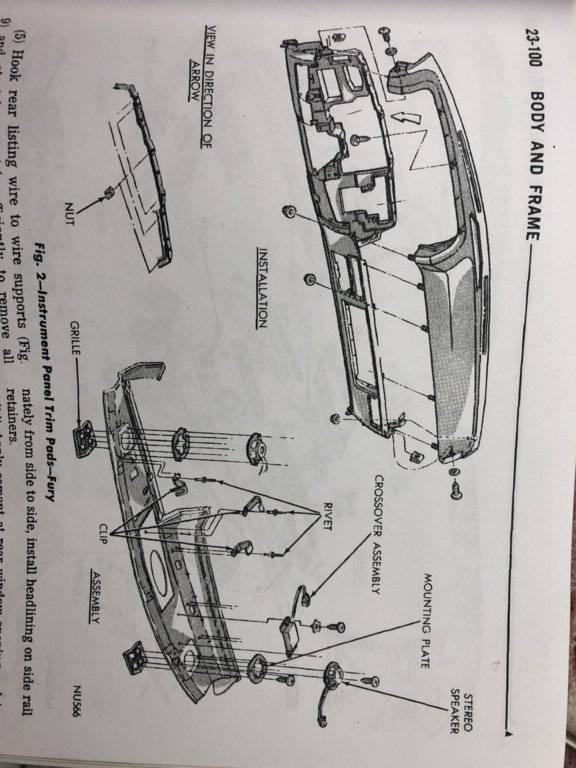

    The shop manual gives a great exploded. View of where the nuts and screws are.

    • Thanks! Thanks! x 1
  4. Welder guy

    Welder guy Old Man with a Hat FCBO Gold Member

    Messages:
    5,190
    Likes Received:
    6059
    Joined:
    Dec 30, 2016
    Location:
    Millet Alberta

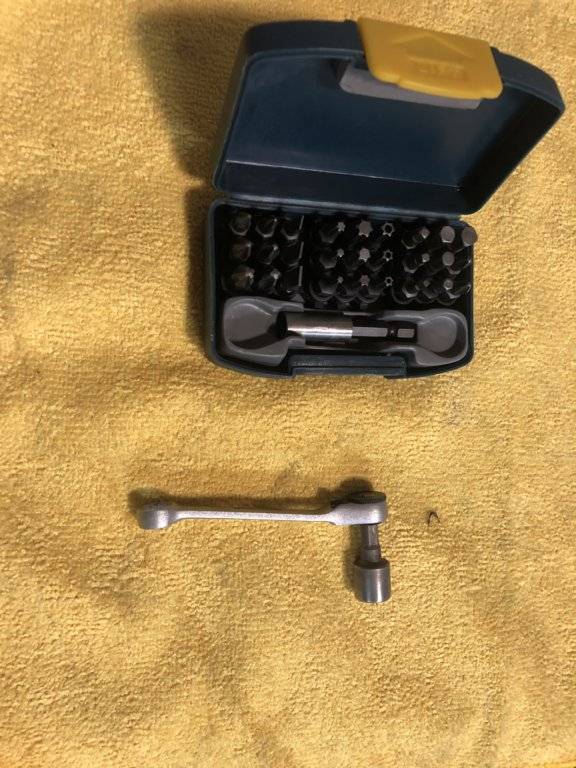

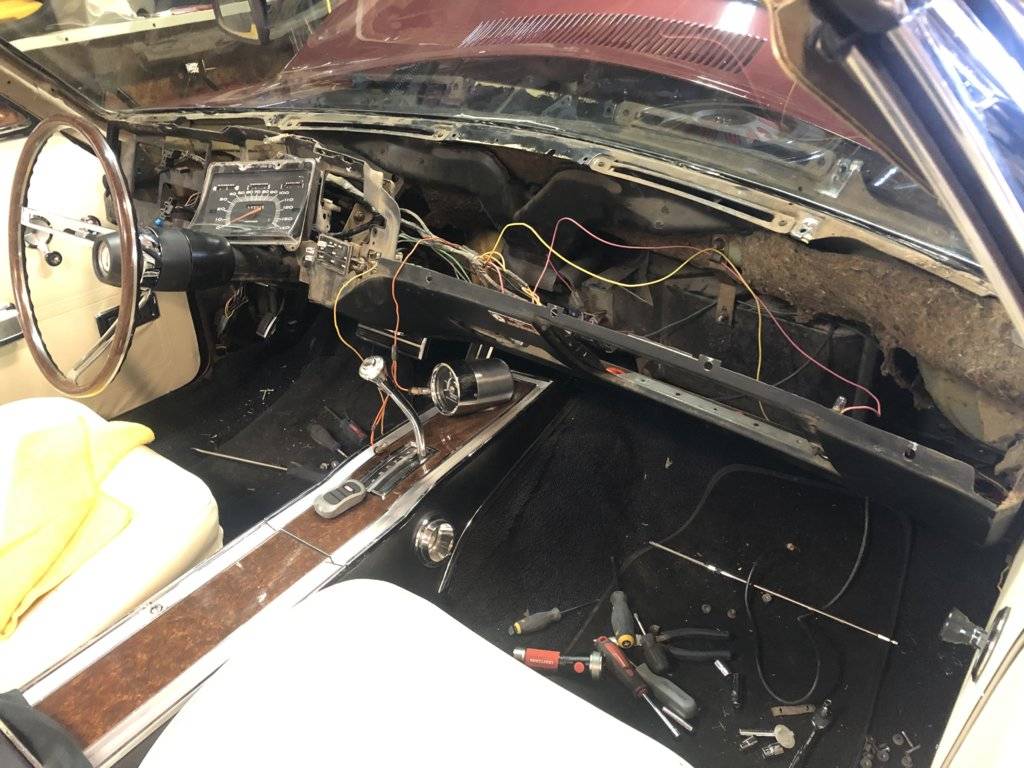

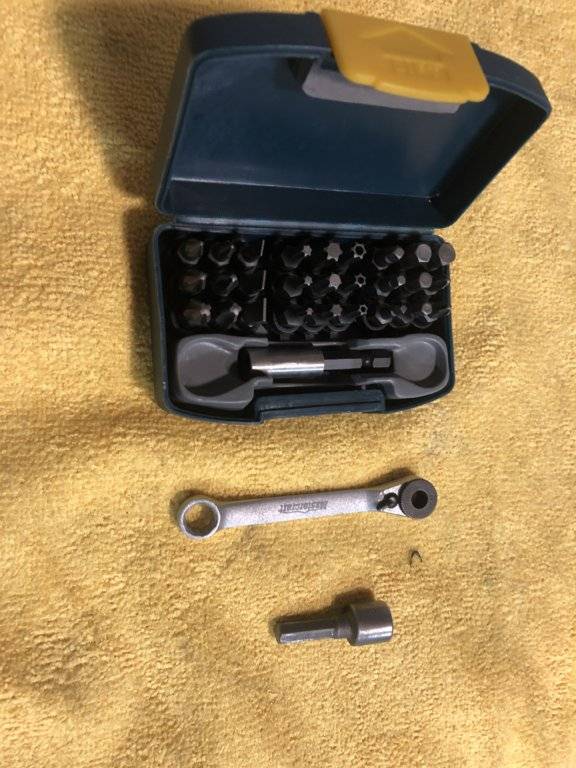

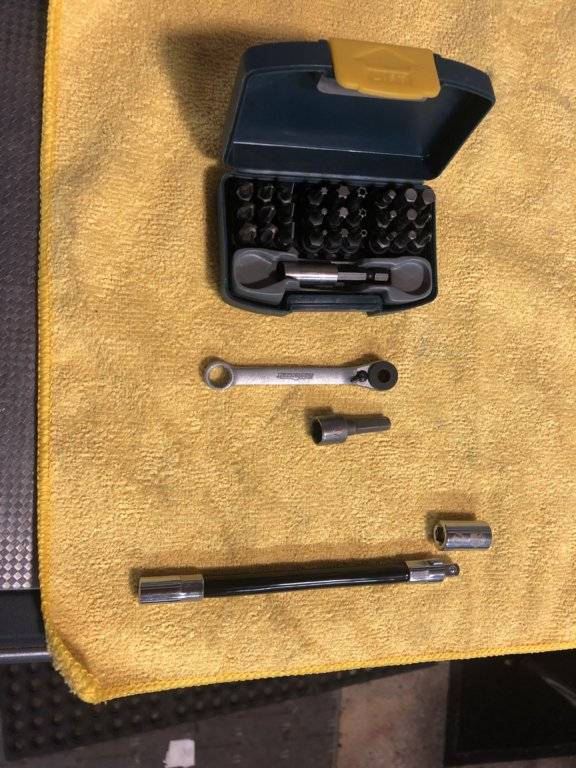

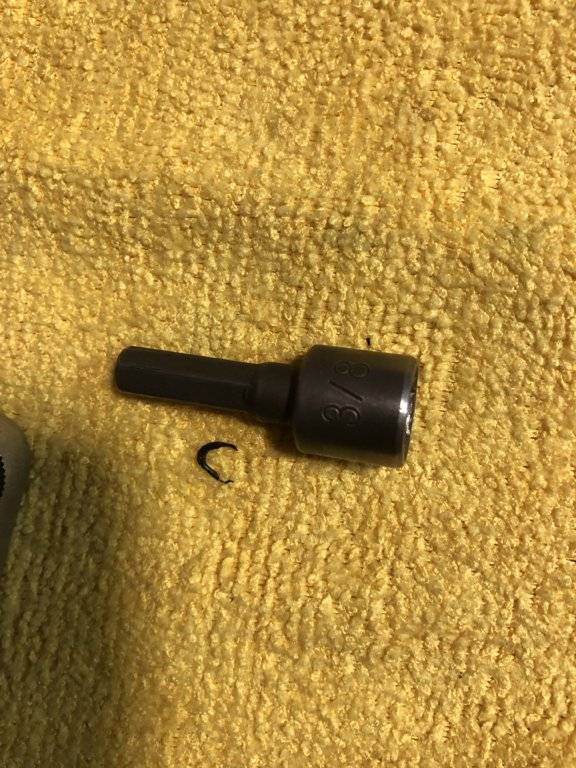

    D7C10E0E-05BD-4327-9190-BD3722F0A821.jpeg F4C00CEA-26E5-417C-AB13-4EEB5C78CB43.jpeg 91F3AAFC-FB9F-49D5-B3D4-5E620E889516.jpeg 734F2570-43AB-4393-95B9-9F44EE1C4C09.jpeg 431945D8-9227-4EE5-B9F1-C6E62DA237C0.jpeg I used my mini ratchet and a 3/8 socket from an old drill bit set I had for metal screws .( I’m sure a small impact drill socket would work as well) This setup worked very well to remove the screws in the defrost vents that are extremely close to the windshield . It maybe took 10-15 minutes to get those 4 screws out . In the video he uses a long flexible extension to get at these screws . I have one of these flexible extensions but i didn’t need to use it . I found the ratchet’s small size very handy and easy to use in that tight spot. necessity is the mother of invention. I had a mini ratchet so that’s what I used , I got it (up here in Alberta) at Canadian tire a few years back. It’s turned out to be one of the handiest little tools sets I have .

    • Like Like x 2
    • Agree Agree x 1
  5. Welder guy

    Welder guy Old Man with a Hat FCBO Gold Member

    Messages:
    5,190
    Likes Received:
    6059
    Joined:
    Dec 30, 2016
    Location:
    Millet Alberta

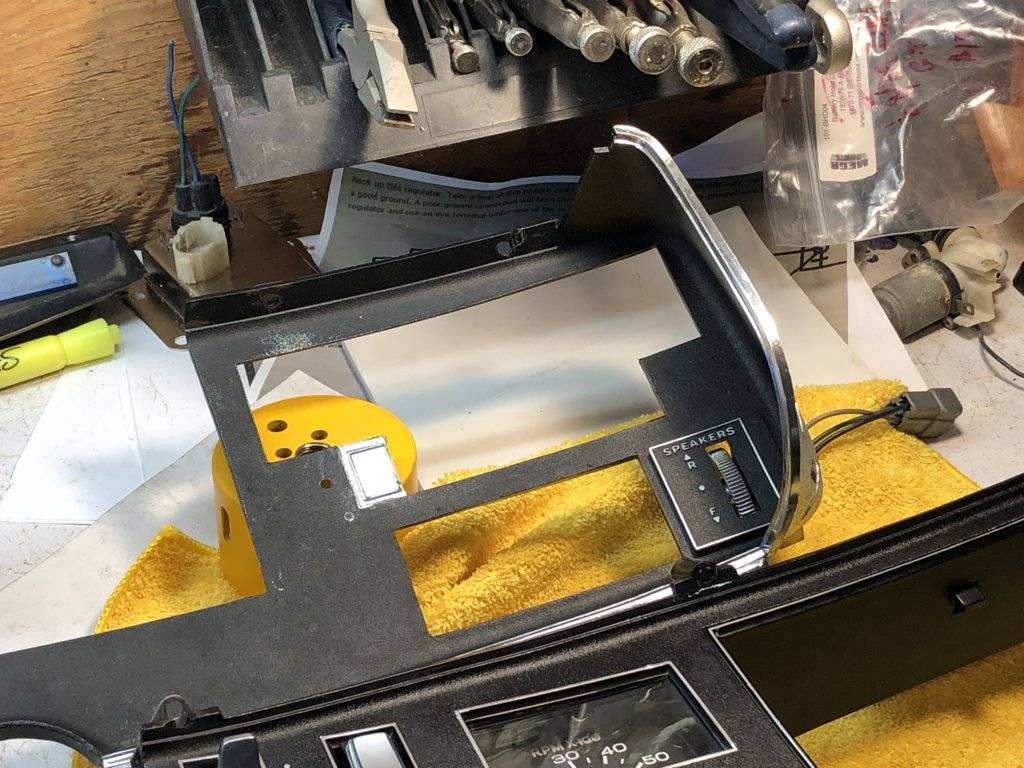

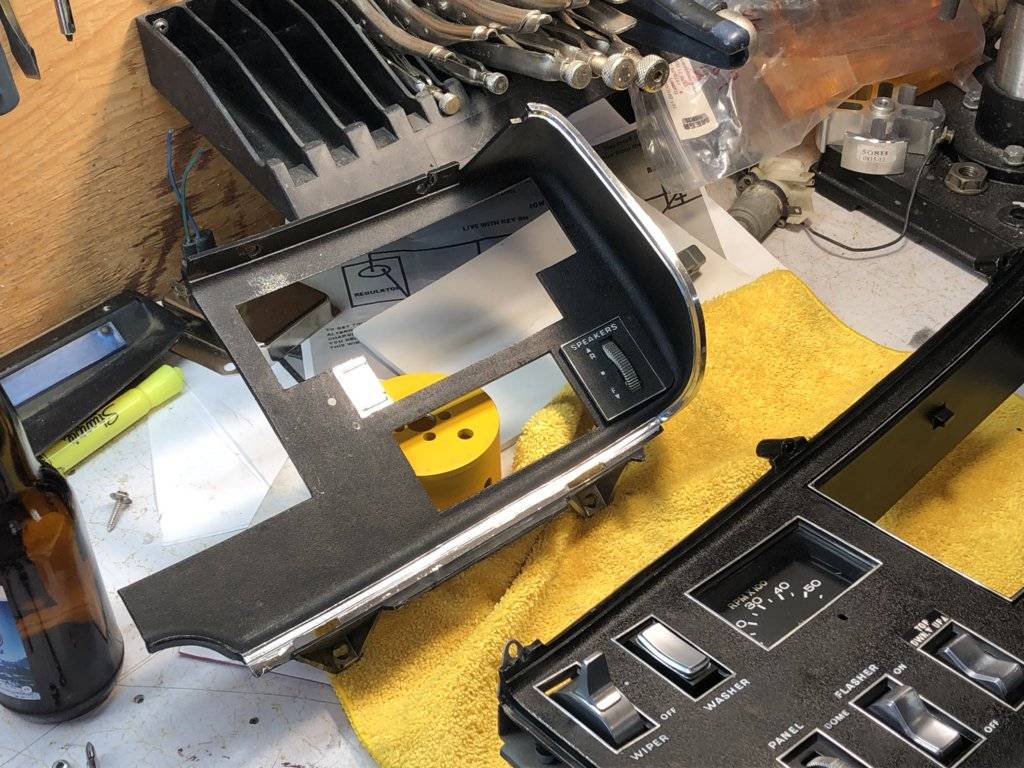

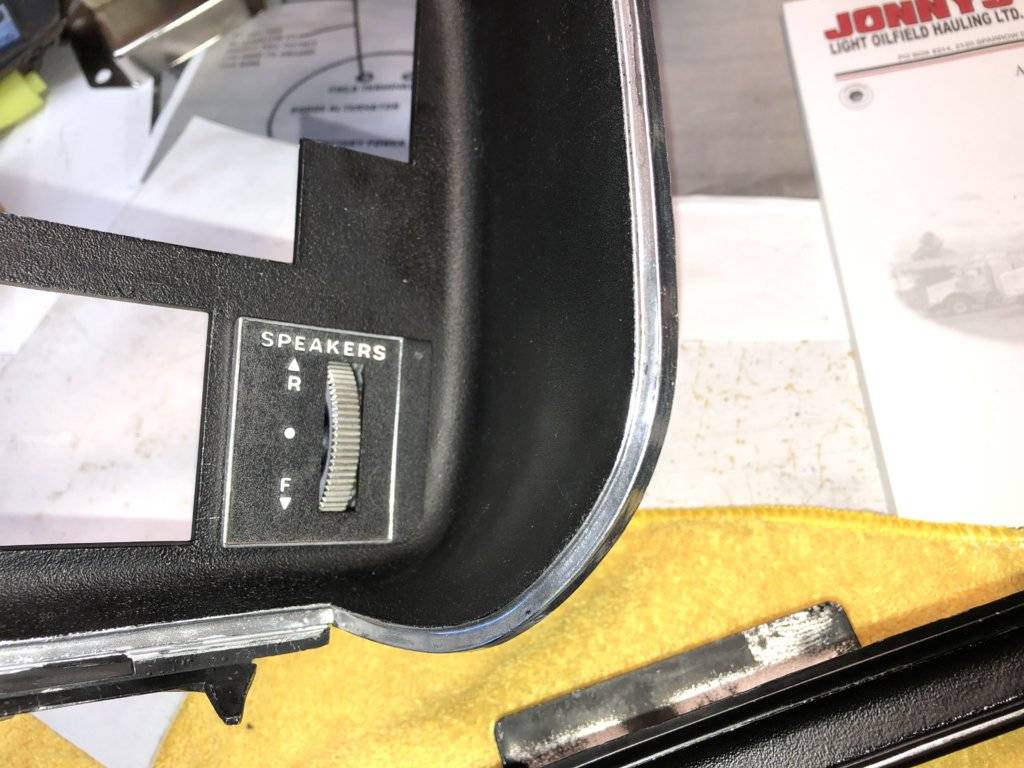

    02AE8CEB-51AA-42B3-8849-E93C5B872B01.jpeg 15E64D6B-AE87-455C-BB36-AFB392867BD6.jpeg B9758783-3BF7-4C97-9C02-5E45CA86BCEB.jpeg 14FA31FA-7288-4CBA-AA8B-9505D4D50E7C.jpeg 5809140B-A076-4CD6-B72F-EB875ABB2810.jpeg EF8B883C-C603-4B09-AA4E-6BB797853E15.jpeg E3596161-8881-4EB7-8EB3-366448AF2BA4.jpeg

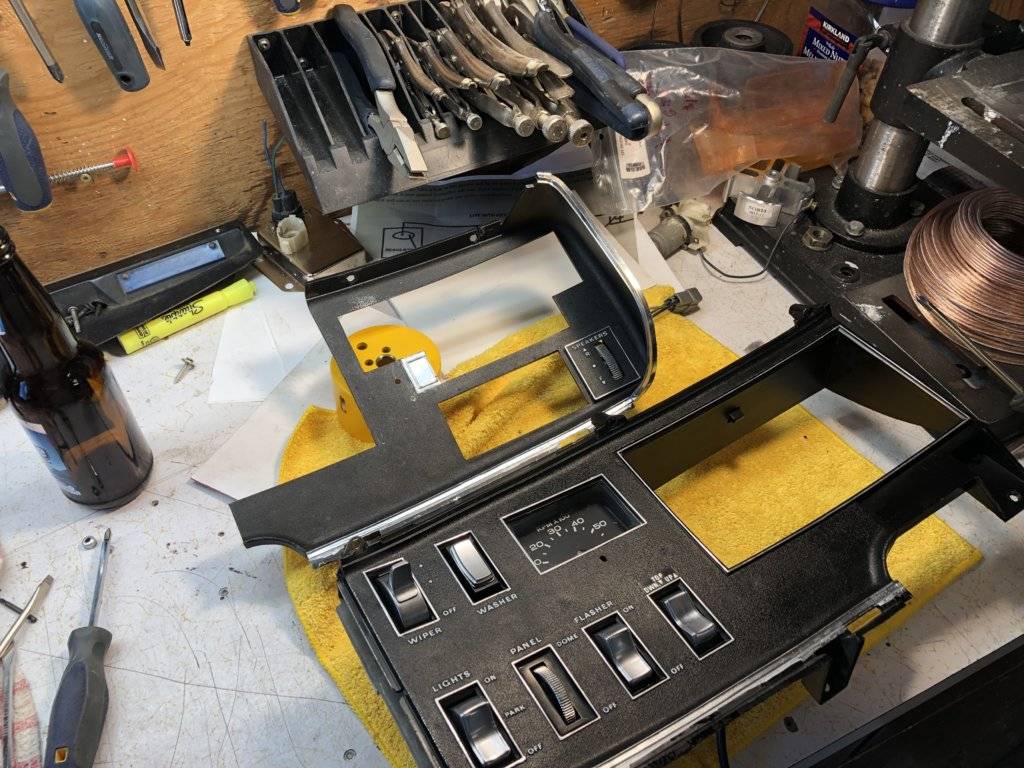

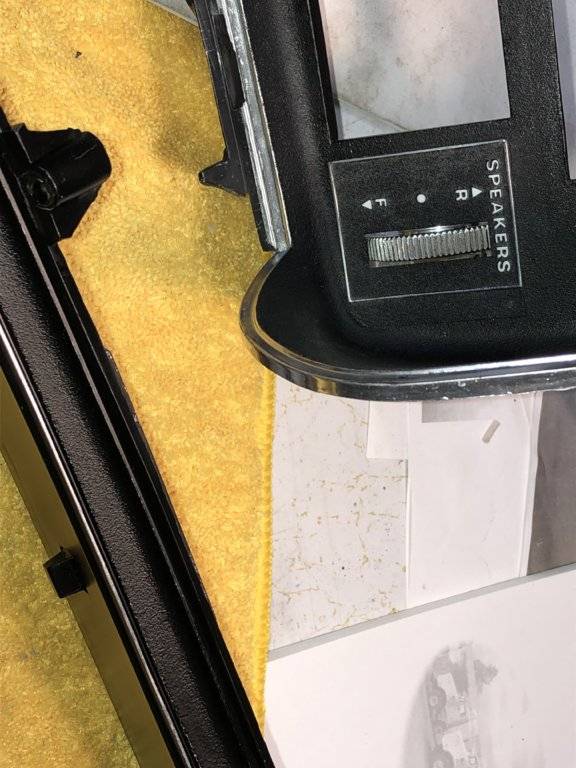

    The liquid chrome pen I used leaves a self leveling , very close to mirror finish , very much like the chrome on an arm rest base plate. I took a few pictures to try and show the reflection of the finish. I was blown away buy how easy it was to use and the end result. I’ve tried the silver paint pen you are talking about but it didn’t give me the chrome finish I was going for . I got my liquid chrome pen at a hobby store in Calgary called PM Hobby craft . I highly recommend the MOLOTOW liquid chrome pen it comes in several different tip sizes. I bought the 4mm,2mm and 1mm tip size pens.

    • Like Like x 3
    • Thanks! Thanks! x 2
  6. barnfind

    barnfind Senior Member

    Messages:
    4,084
    Likes Received:
    4258
    Joined:
    Nov 20, 2014
    Location:
    Around Town
    [QUOTE="Welder guy, post: 710225, member: 5641"
    The liquid chrome pen I used leaves a self leveling , very close to mirror finish , very much like the chrome on an arm rest base plate. I took a few pictures to try and show the reflection of the finish. I was blown away buy how easy it was to use and the end result. I’ve tried the silver paint pen you are talking about but it didn’t give me the chrome finish I was going for . I got my liquid chrome pen at a hobby store in Calgary called PM Hobby craft . I highly recommend the MOLOTOW liquid chrome pen it comes in several different tip sizes. I bought the 4mm,2mm and 1mm tip size pens.[/QUOTE]

    Thanks Marlow, Have a set of 3 MOLOTOW chrome pens on their way for the C dash.

    Last edited: Feb 18, 2019
    • Like Like x 1
  7. Dobalovr

    Dobalovr Being on the Cbody diet SUCKS! FCBO Gold Member

    Messages:
    5,122
    Likes Received:
    4085
    Joined:
    Sep 3, 2015
    Location:
    Calgary Alberta
    Looking great Marlow thanks for the chrome pen info!
    :thankyou:

    • Agree Agree x 1
  8. 70 Sport Suburban

    70 Sport Suburban Active Member FCBO Gold Member

    Messages:
    326
    Likes Received:
    352
    Joined:
    Jan 17, 2017
    Location:
    Racine,Wi
    I used one of the chrome pens they work great.


    • Like Like x 4
  9. Welder guy

    Welder guy Old Man with a Hat FCBO Gold Member

    Messages:
    5,190
    Likes Received:
    6059
    Joined:
    Dec 30, 2016
    Location:
    Millet Alberta
    They work great, there’s a couple good videos on YouTube about them. It’s pretty cool how good they work, you just press the tip like any other paint pen and away you go . It takes a few seconds after you lay a nice coat down for it to level out , in the same few seconds it turns from a silver to mirror finish. It’s a cool product to use. If I had a pail of this stuff I would dip all kinds of things in it . I made a couple of mistakes and I had to be quick with a micro fibre cloth to wipe it off and start over. Let it dry over night then you can handle it with out any issues. Touch ups are easy done just make sure the tip is wet and go for it. The chrome levels fairly well. If I can do it anyone can do it.

    • Like Like x 1
  10. Welder guy

    Welder guy Old Man with a Hat FCBO Gold Member

    Messages:
    5,190
    Likes Received:
    6059
    Joined:
    Dec 30, 2016
    Location:
    Millet Alberta
    Right on your bezel looks great.

    • Like Like x 1
    • Agree Agree x 1
  11. 3C's & a D?

    3C's & a D? Well-Known Member

    Messages:
    902
    Likes Received:
    319
    Joined:
    Oct 27, 2015
    Location:
    By the tree in Edmonton
    Looking great Marlow! I have had the exact same mini ratchet set for years, can't imagine how much easier it's made certain jobs. I recently got a slightly heavier duty version at princess auto. Give me a day or two and I'll post a photo or two of my glovebox stereo install. Same dash, I really thought it through and I think it worked out well.

  12. Welder guy

    Welder guy Old Man with a Hat FCBO Gold Member

    Messages:
    5,190
    Likes Received:
    6059
    Joined:
    Dec 30, 2016
    Location:
    Millet Alberta
    I look forward to seeing your pictures!!!

  13. 3C's & a D?

    3C's & a D? Well-Known Member

    Messages:
    902
    Likes Received:
    319
    Joined:
    Oct 27, 2015
    Location:
    By the tree in Edmonton

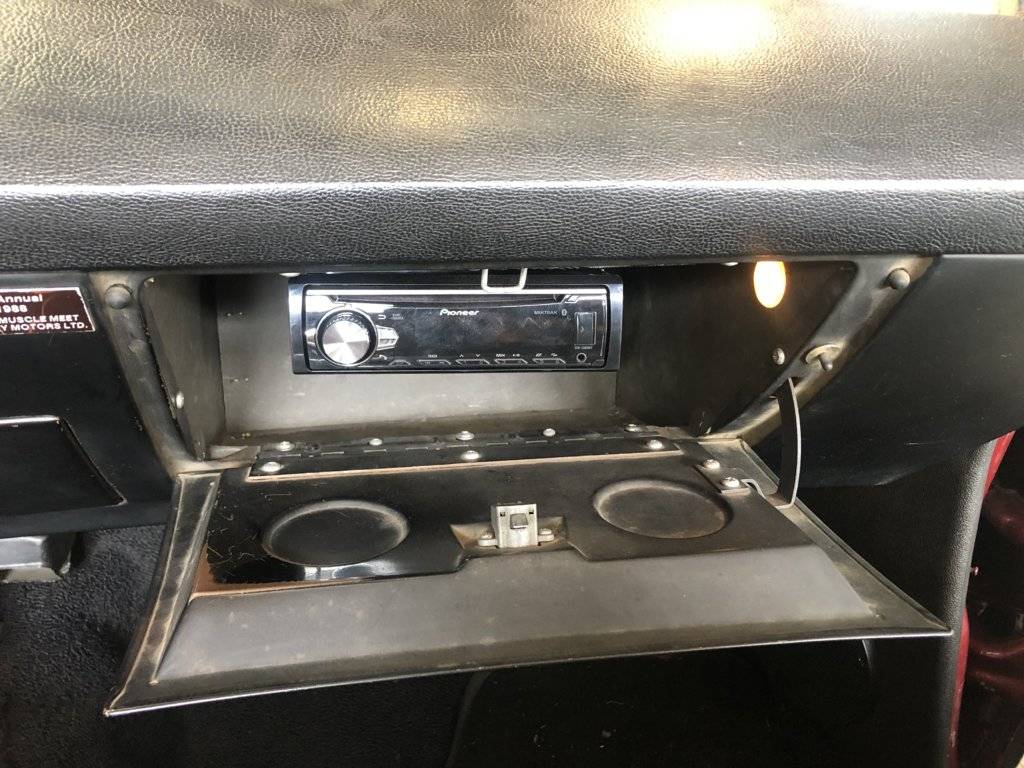

    This is in my '71 Polara. It's the only one that turned out, the lighting wasn't working well. The flash really brings out the edges of the black paperboard, and I can see the back corner has split. The bezel isn't installed, I can't remember why. I had some practice on a '71 Monaco before I did this one, it had A/C and had to be mounted square, which made it difficult to read the display from the drivers seat. This is as good as it gets. Remote required of course. Pioneer, my preference as well, offers a wired remote too. Last one I installed didn't have the threaded hole in the heatsink at the back, which helps in this case. Not sure if I got a dud or what. If yours doesn't have one you could drill and tap one. IMG_20190220_190611.jpg

    • Thanks! Thanks! x 1
  14. Welder guy

    Welder guy Old Man with a Hat FCBO Gold Member

    Messages:
    5,190
    Likes Received:
    6059
    Joined:
    Dec 30, 2016
    Location:
    Millet Alberta

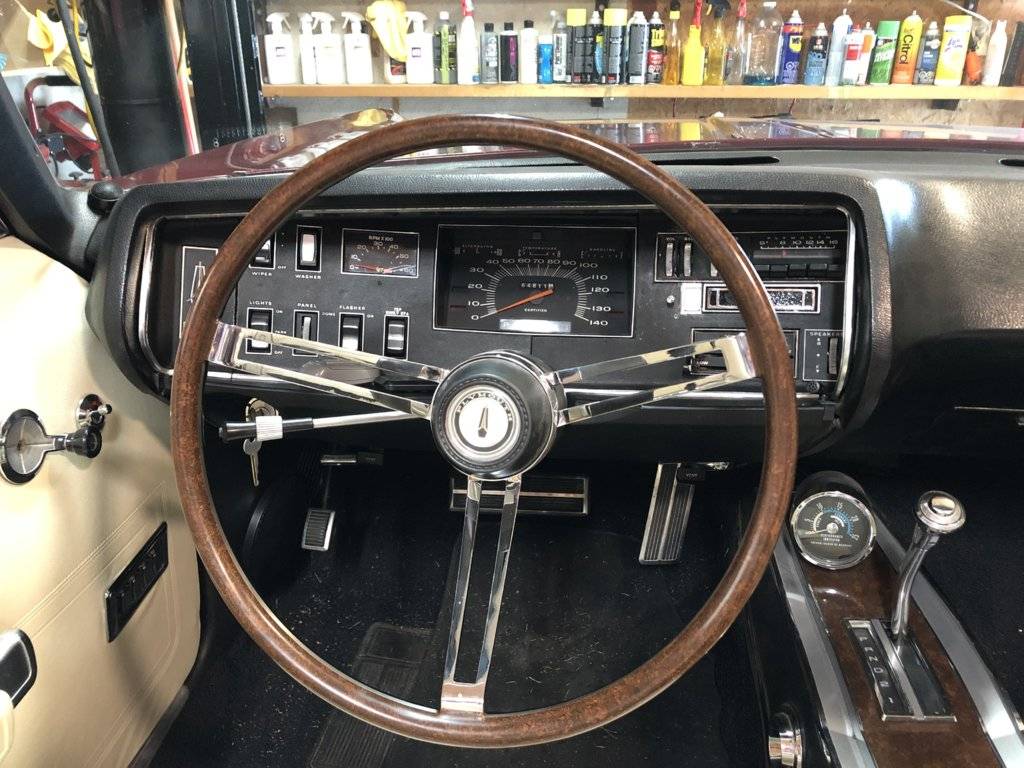

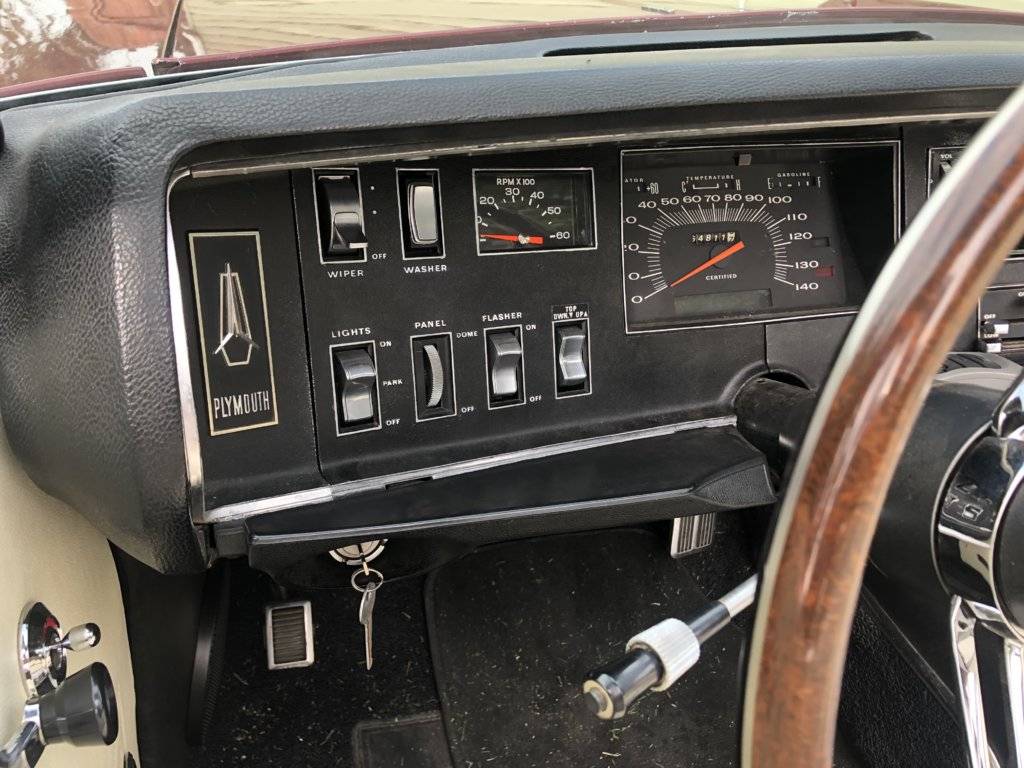

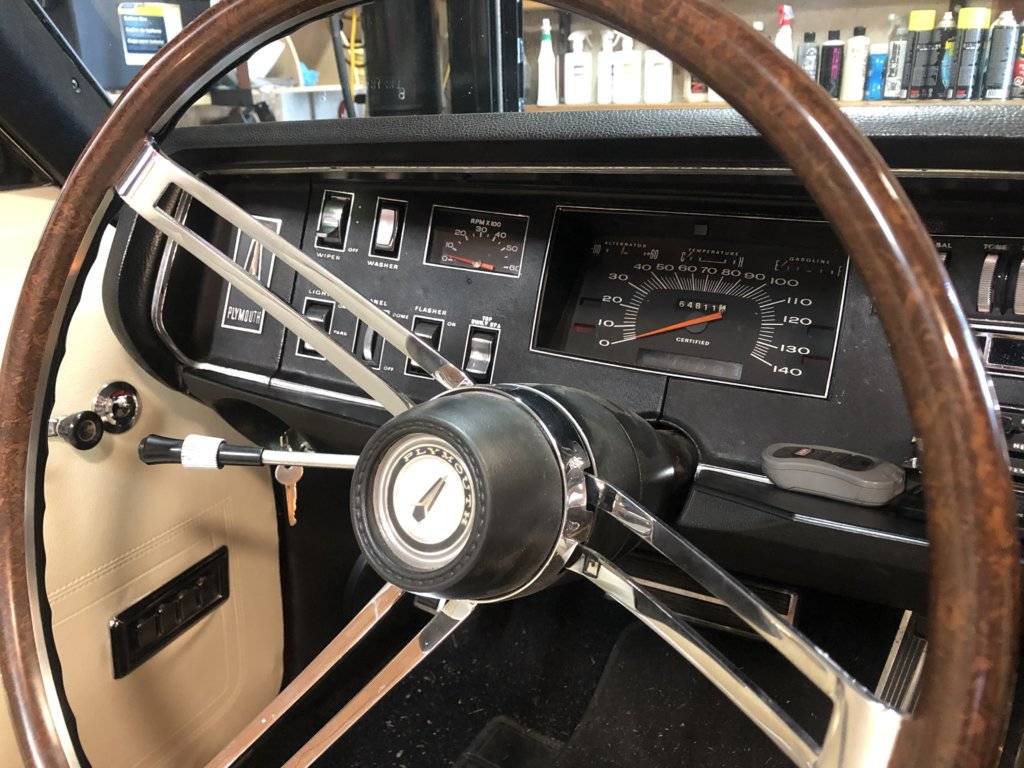

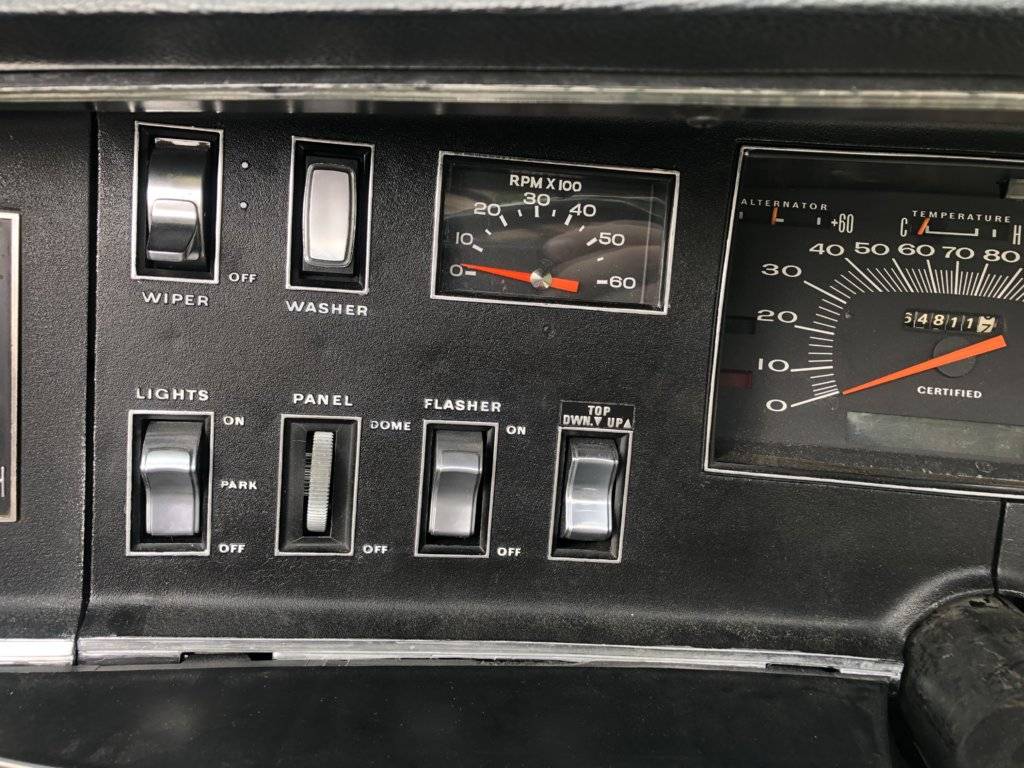

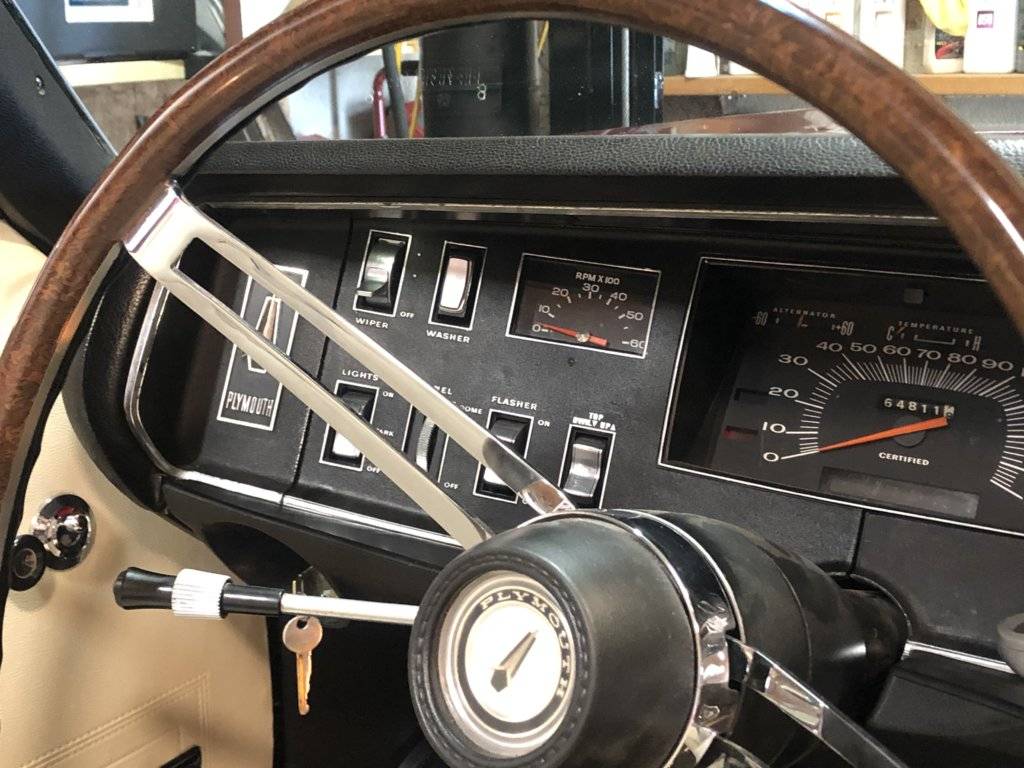

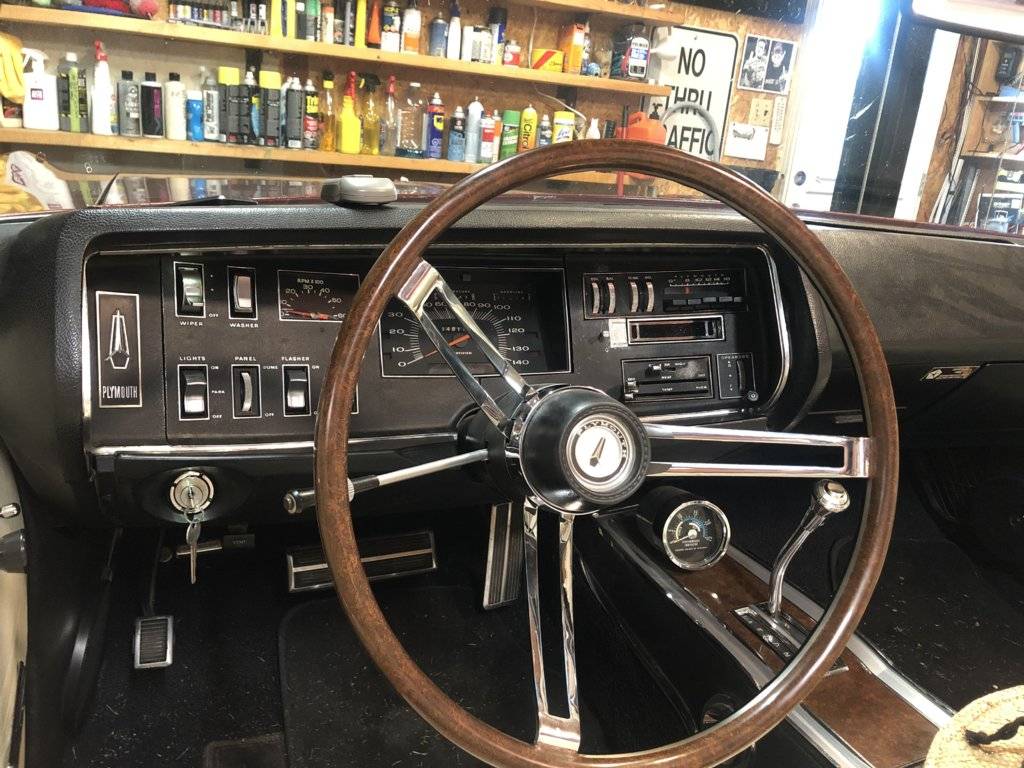

    Well I finally got around to taking a few pictures of the installed tach, it’s worked well the past few months. The one thing I would do is mount the needle a few degrees counter clockwise so it starts at the zero mark. As it stands now it starts at the white mark just above the zero. But that’s a next winter job. A3D474B3-A910-48B2-B066-00A7C68B970A.jpeg 1C623904-038C-476E-B32E-26C3E836BE70.jpeg 7DBB688A-30FC-4480-9139-83AA2E56D494.jpeg F94FDAB8-6EDF-4E32-8426-C93AF23A6E4A.jpeg 194F642A-91D7-4C8A-836D-83728B09CB4F.jpeg 7CED3EE1-A554-4506-A9D1-413C5F9B2D9B.jpeg 4216DFD8-A8B9-4AF6-A6B3-4A33C72CB85D.jpeg

    • Like Like x 4
  15. Snotty

    Snotty Senior Member FCBO Gold Member

    Messages:
    3,024
    Likes Received:
    1004
    Joined:
    Aug 18, 2015
    Location:
    Chico, California
    That is so cool!

    Where's a picture if you taching 5,800??? :lol:

    • Like Like x 1
  16. dart1962_440

    dart1962_440 Member

    Messages:
    84
    Likes Received:
    24
    Joined:
    Nov 27, 2010
    Looks great!

    • Thanks! Thanks! x 1
  17. Welder guy

    Welder guy Old Man with a Hat FCBO Gold Member

    Messages:
    5,190
    Likes Received:
    6059
    Joined:
    Dec 30, 2016
    Location:
    Millet Alberta

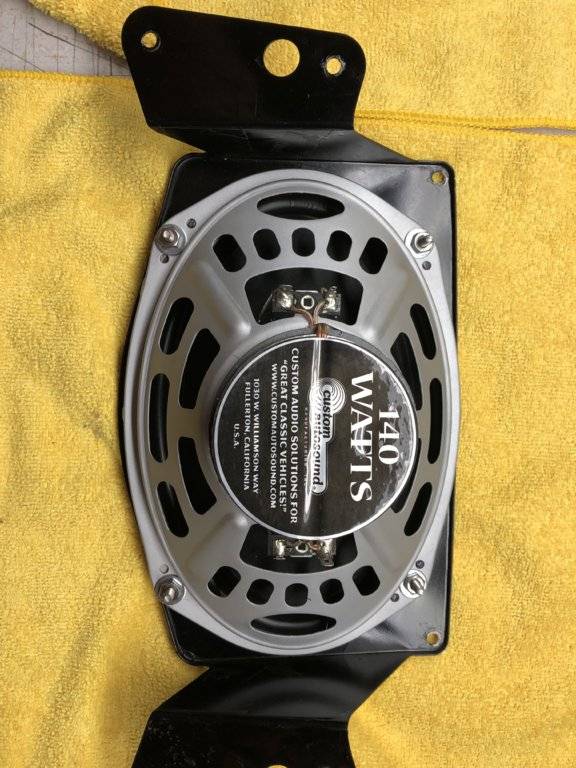

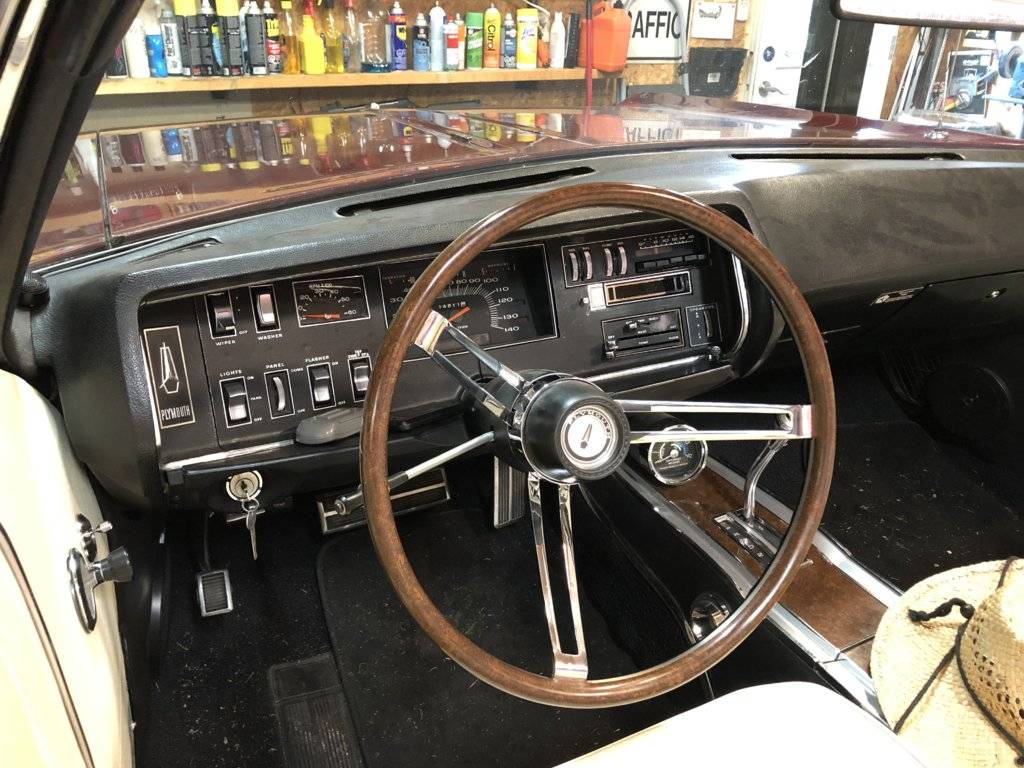

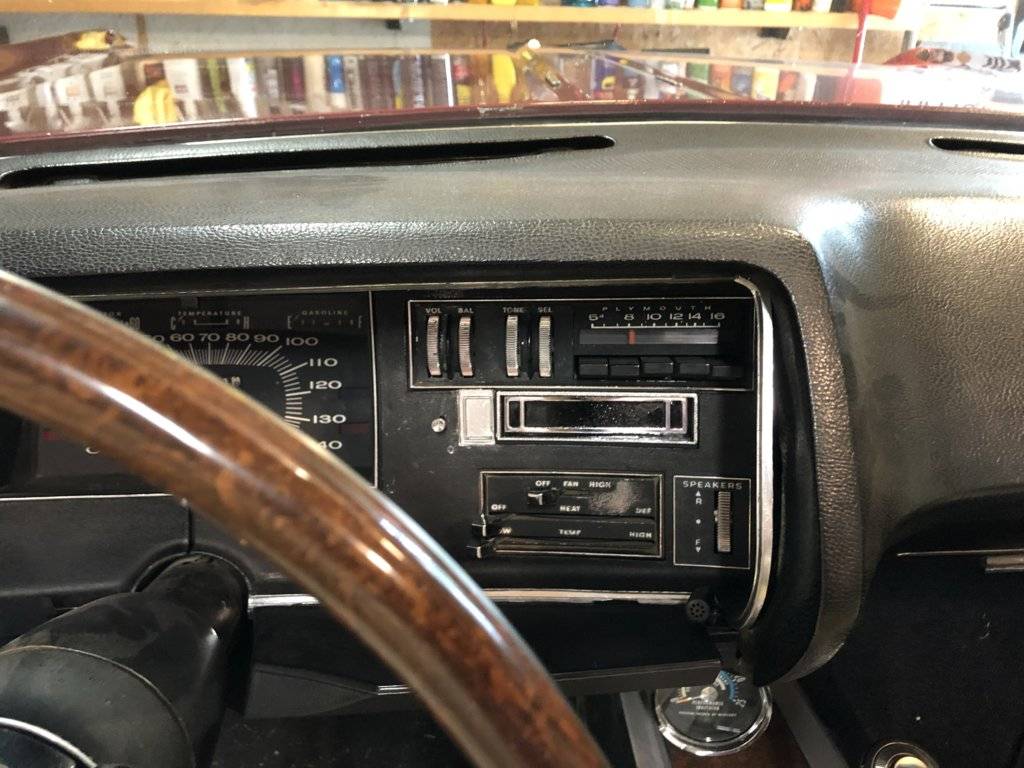

    While I had the dash pad off this past winter , I replaced the AM radio with a 8 track from one of my parts cars. I like the look of it but not the sound of it. Then I mounted my Bluetooth stereo in my glove box along with a new 140 watt dual voice coil speaker from custom auto sound in the centre of the dash pad. I mounted the Bluetooth microphone for the new stereo on the lower right hand corner below the 8 track stereo fader dial. I can now receive and make crystal clear hands free phone calls from my car via the Bluetooth stereo wirelessly connected to my phone . It will play all the tunes on my phone as well as streaming satellite radio from my phone. I really enjoy being able to listen to quality tunes while I drive. B079B42C-4CD4-4683-B7C8-0FD268025DF4.jpeg 6D9CD8A1-FB2A-4889-843A-8CA0F494850A.jpeg 2412D98A-AA81-4EB3-ACFA-65C64644F28E.jpeg 363ABED6-0DFC-4A73-9B50-DA8DFB70BB92.jpeg BF413FCD-1076-4725-BD09-625D223CDA28.jpeg 16BC7A27-E758-471C-AFC0-5AB68931CC48.jpeg 01844EC6-F51F-4FB3-B81F-F2FBC8FEC554.jpeg

    • Like Like x 4
  18. Welder guy

    Welder guy Old Man with a Hat FCBO Gold Member

    Messages:
    5,190
    Likes Received:
    6059
    Joined:
    Dec 30, 2016
    Location:
    Millet Alberta

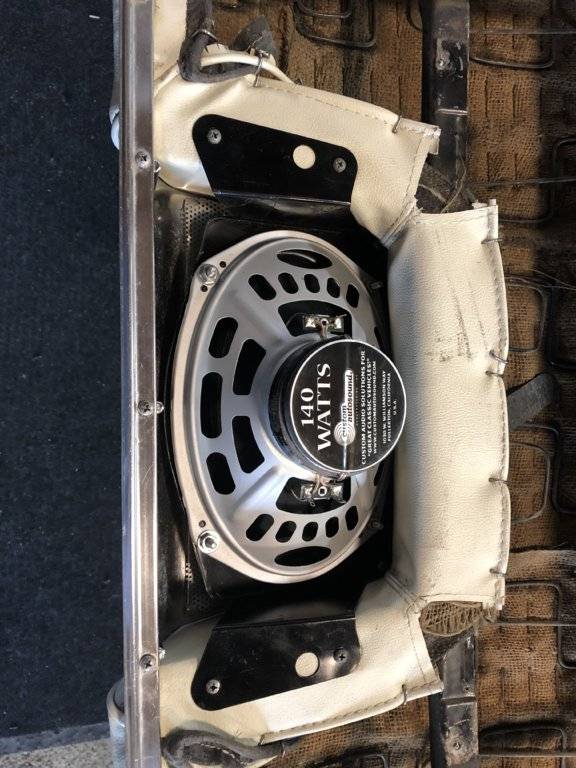

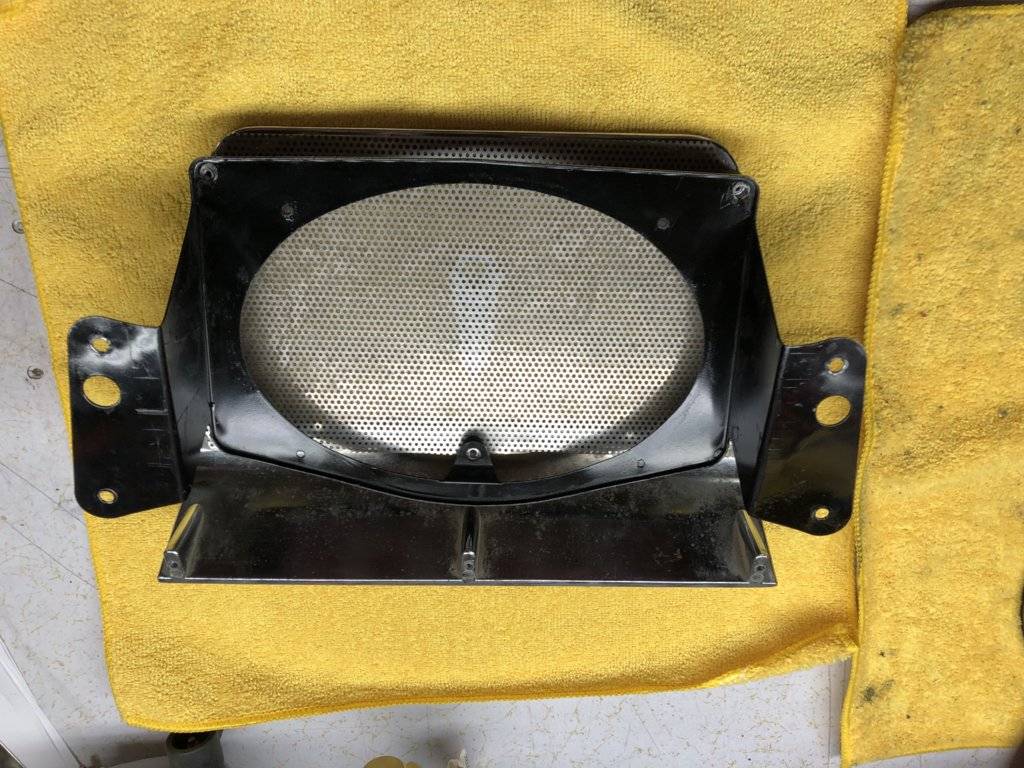

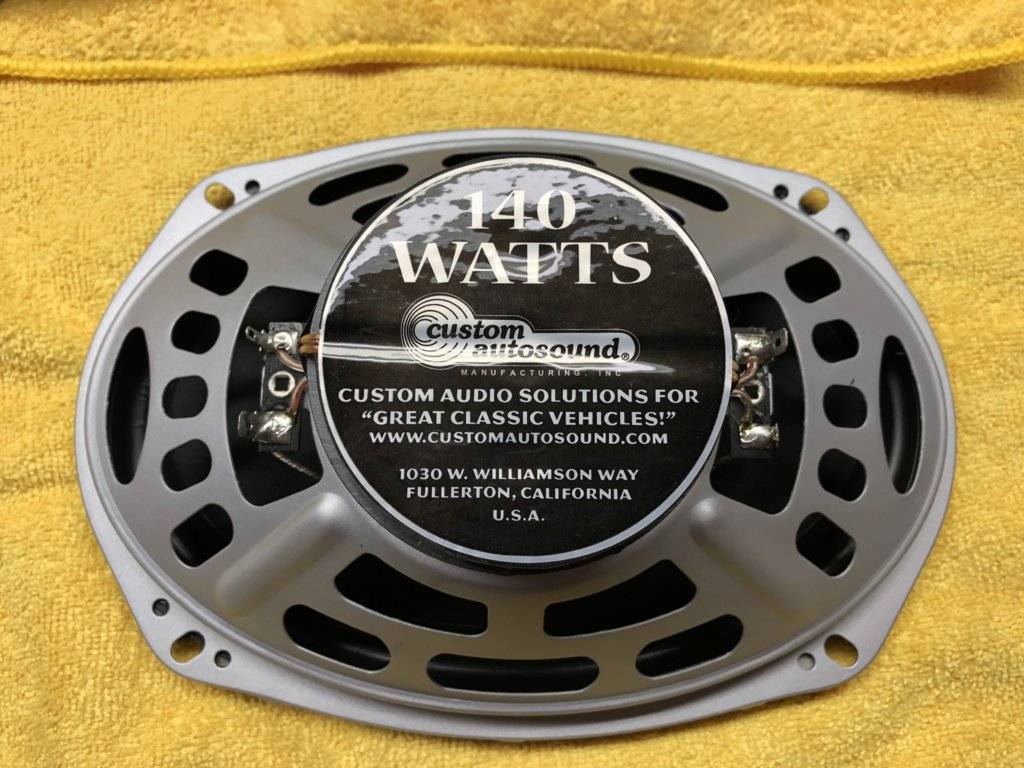

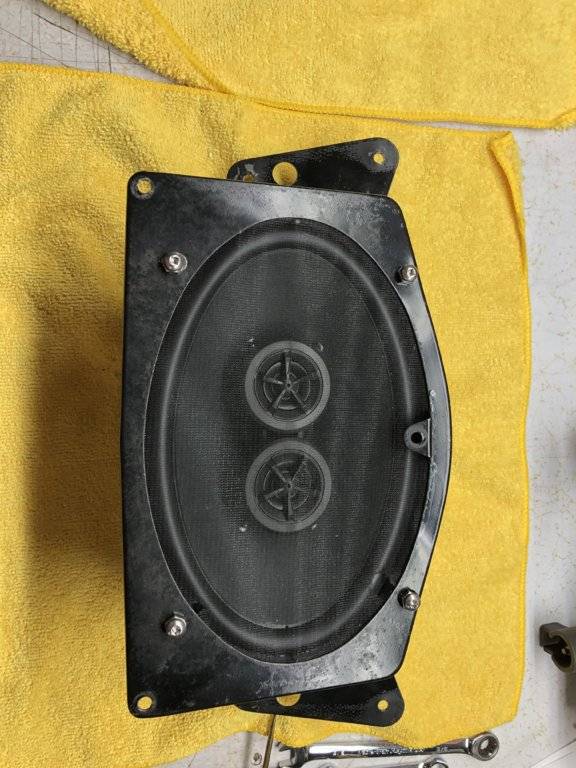

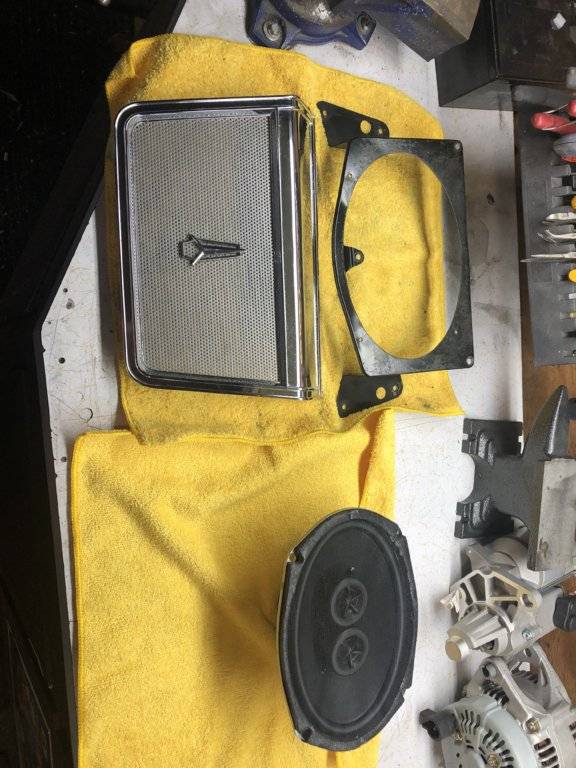

    I replaced the speaker in the back seat with a new dual coil 140 watt custom auto sound speaker and replaced the speaker screen with perforated stainless steel. The argent silver paint wore off down to the chrome and I liked the look so I left it that way. I think the contrast of the unpolished stainless grill against the chrome trim works well together. 097FA747-6DD5-4355-8D8E-54384033B208.jpeg 7FEB4E6D-2D75-4844-A84D-2B33E7DC6B1F.jpeg 1C3F1AEF-C3D4-4F73-8D12-9B823B99E921.jpeg 84CF6F75-807F-4FAB-8AB8-6CA24FB57B88.jpeg 0B97AAD2-BFBD-46A1-847A-8D0EA4F24BBA.jpeg 34ECF2CB-2974-4A25-AC7D-ACCEFEEBDA9F.jpeg F9DB5C58-E11A-4CEA-8921-ED96CAFA2BD4.jpeg 93CF7DE9-3059-4781-A957-DF05BC351EB2.jpeg

    Last edited: Aug 1, 2019
    • Like Like x 2
  19. Welder guy

    Welder guy Old Man with a Hat FCBO Gold Member

    Messages:
    5,190
    Likes Received:
    6059
    Joined:
    Dec 30, 2016
    Location:
    Millet Alberta

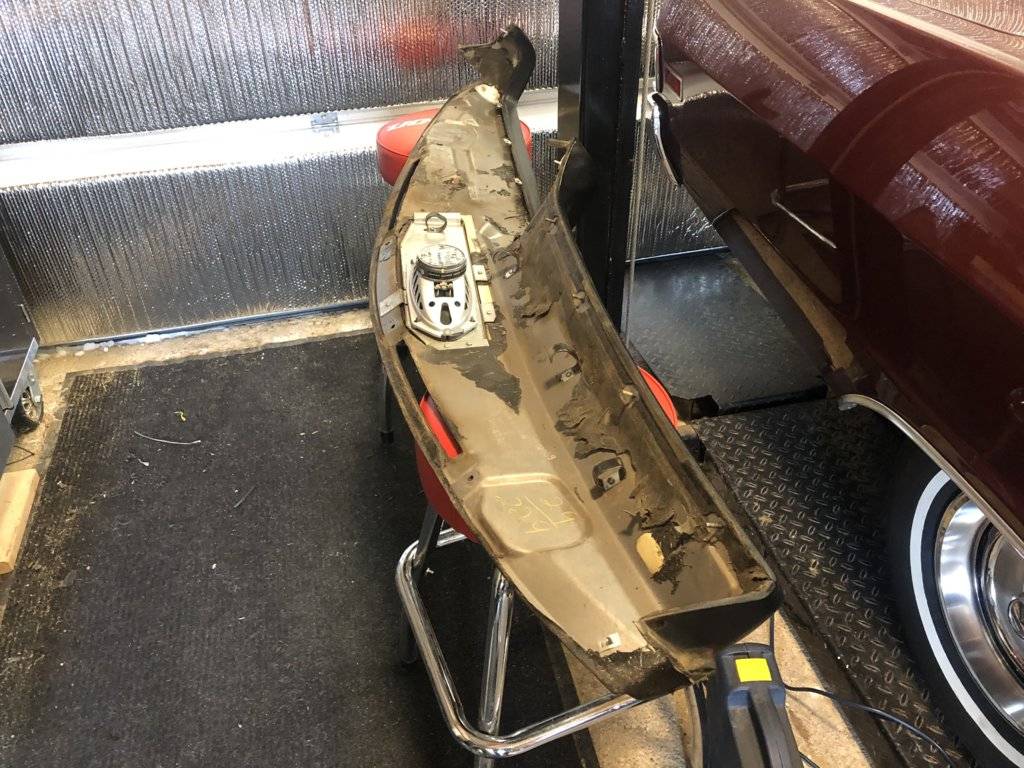

    My rear seat’s -back of the Seat speaker cover was very brittle and broken so I just made my own cover. ABCmoparts sells them but I haven’t ordered one yet.

    Last edited: Aug 1, 2019
  20. Welder guy

    Welder guy Old Man with a Hat FCBO Gold Member

    Messages:
    5,190
    Likes Received:
    6059
    Joined:
    Dec 30, 2016
    Location:
    Millet Alberta

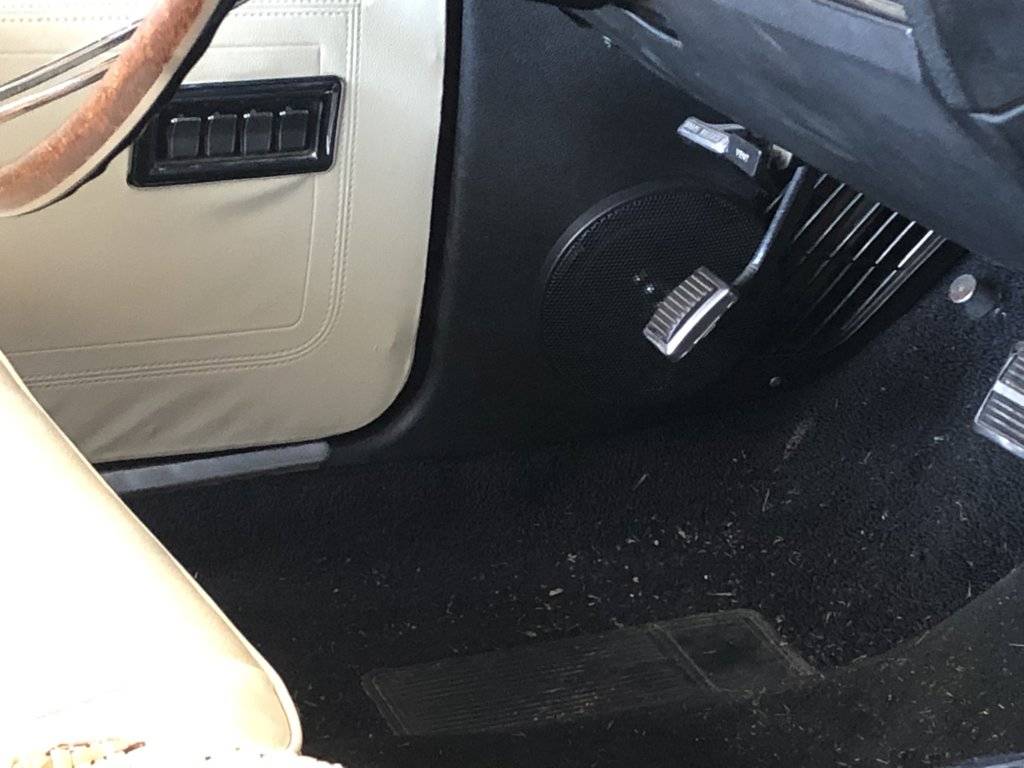

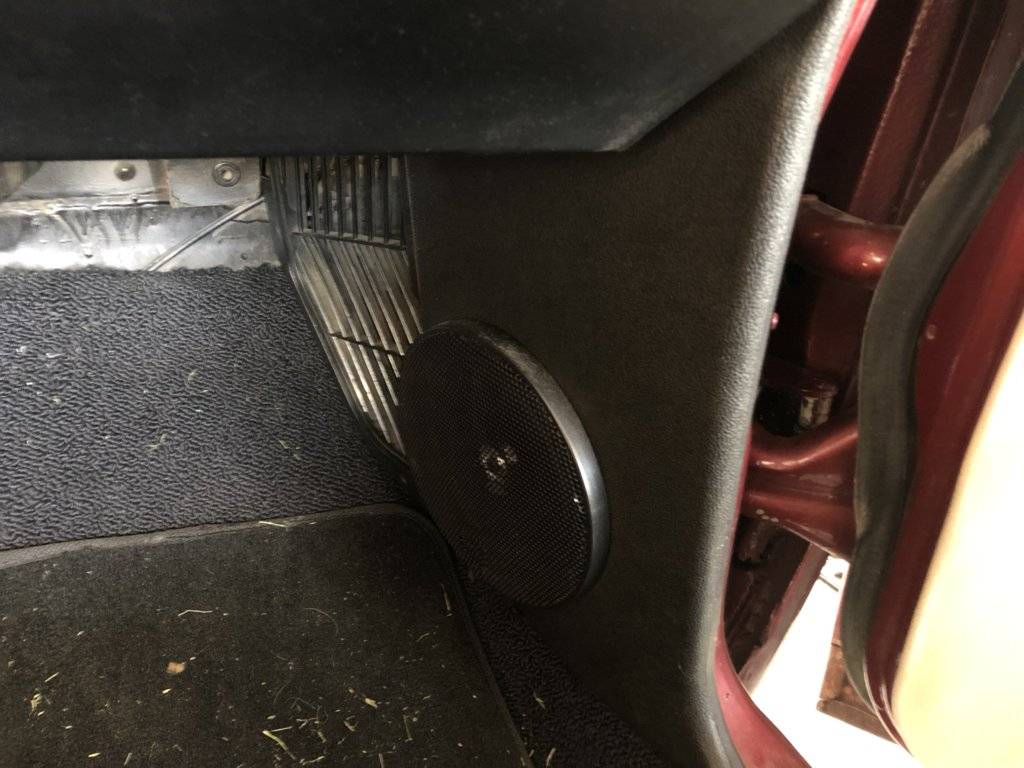

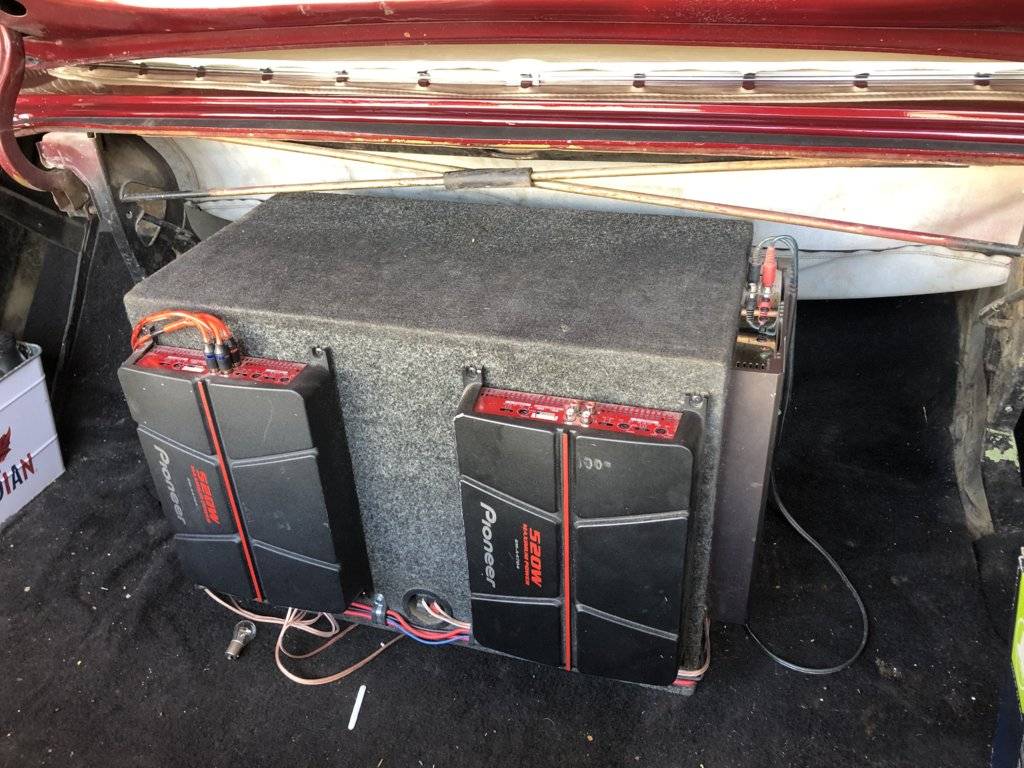

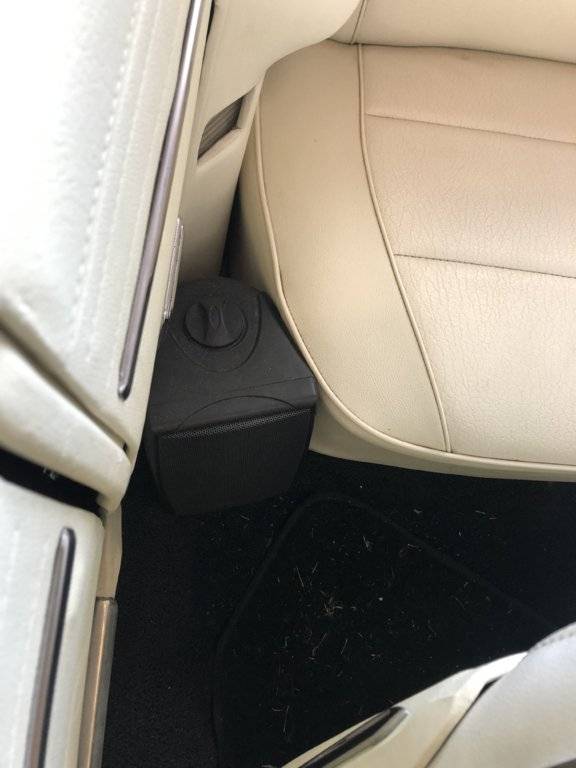

    I have a 15” sub in the trunk, A set of 6” in the front kick panels . I did not cut the original panels , I used a set from a parts car . I installed a set of self contained speakers beside the bottom of back just seat below the window switch’s. They fit very nice with no cutting of any original car material. The amps are mounted to the sub box. All stereo parts can be easily removed in an afternoon with out any damage to the car if needed. The middle amp is unhooked at the moment, it’s for future plans . The tunes never sounded better in the old girl . 32166891-0140-4D16-98CD-4E29A112A293.jpeg 7EF0AF57-EB1C-4D65-B853-04459CB4DC2E.jpeg 92593677-9E36-4786-9448-AA5ABC64C2E0.jpeg 4D0D177C-0D6A-448F-B3BE-8A91AC66EA83.jpeg 0490652E-6B14-4A58-8488-F72674825EE7.jpeg

    • Like Like x 1
