Swedged stud, hub, drum removal

Brakes, Suspension, Rims and Tires

  1. Lance Whitacre

    Lance Whitacre New Member

    Messages:
    25
    Likes Received:
    11
    Joined:
    May 5, 2017
    Location:
    Cumberland, Md
    I am requesting help in swapping front drums on my '69 Fury. I need to swap out my finned 11x3 drums for some smooth drums. I have searched the forums on here and cannot find a procedure for a way to remove the swedged studs in a manner to prevent damage the hub. I have new drums and studs and I bought a 5/8" hole saw to attempt to cut the swedge off. If I am successful in cutting off the swedge, do I press the lugs or the hub out first?

  2. Ross Wooldridge

    Ross Wooldridge Senior Member FCBO Gold Member

    Messages:
    3,172
    Likes Received:
    998
    Joined:
    Apr 25, 2016
    Location:
    Scotland, Ontario, Canada
    There is a tool called a swedge cutter.
    The hub should be free once the studs are removed, and most people just pound them out, however, I used a swedge cutter.

    New studs are supposed to be swedged onto the hub and drum once installed, but most people don't.

  3. Lance Whitacre

    Lance Whitacre New Member

    Messages:
    25
    Likes Received:
    11
    Joined:
    May 5, 2017
    Location:
    Cumberland, Md
    Thanks, I'm sure I can get the old studs out, even if I have to cut and grind then flush to the drum. I just don't want to damage the hub. I like to do things the right way, but often get impatient. My local machine shop does not have a swedge cutter and told me to cut the studs of flush then they can press them out.

  4. Ross Wooldridge

    Ross Wooldridge Senior Member FCBO Gold Member

    Messages:
    3,172
    Likes Received:
    998
    Joined:
    Apr 25, 2016
    Location:
    Scotland, Ontario, Canada
    I've done that too with a dremel tool.

    • Like Like x 1
  5. 413

    413 Well-Known Member

    Messages:
    606
    Likes Received:
    214
    Joined:
    Jan 28, 2019
    Location:
    NW USA
    Cutting flush may not do it. If any swedge is left it will enlarge the holes in the hub. You need to cut off the Swedge and it goes deeper than flush. Also drill a hole in the center of the stud so it will callapse in on itself instead of make the hole bigger.

    • Like Like x 2
  6. 68PK21 440.6bbl

    68PK21 440.6bbl Old Man with a Hat

    Messages:
    5,186
    Likes Received:
    2904
    Joined:
    Nov 29, 2017
    Location:
    Siren City
    Jayeeeezuz... Ya don't know anyone with one of these antiques that you can use for like 10/15 minutes?



  7. Lance Whitacre

    Lance Whitacre New Member

    Messages:
    25
    Likes Received:
    11
    Joined:
    May 5, 2017
    Location:
    Cumberland, Md
    Aaaaa no.

  8. Joseph James

    Joseph James Senior Member

    Messages:
    1,505
    Likes Received:
    920
    Joined:
    Jul 21, 2018
    Location:
    Asheville, NC

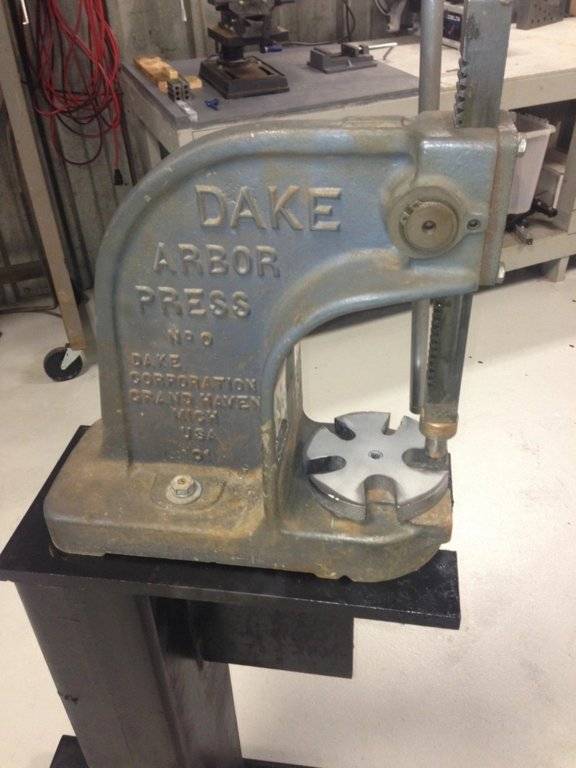

    You can still buy those. I think HF even sells one. Or, it may have been in the Grizzly catalogue where I saw it.

    Last edited: Mar 11, 2019
  9. DCMC

    DCMC Member

    Messages:
    174
    Likes Received:
    176
    Joined:
    May 27, 2013
    Location:
    Califon nj
    I have a arbor press similar to that one, missing the bottom plate and the piece for pressing, I used it for u joints.

  10. Lance Whitacre

    Lance Whitacre New Member

    Messages:
    25
    Likes Received:
    11
    Joined:
    May 5, 2017
    Location:
    Cumberland, Md
    Thanks for the help. Here's where I'm at now. I used the 5/8" hole saw in my drill press and drilled around each stud about an 1/8" into the old drum. The hub came out with a light tap. I knocked the studs out of the hub with a hammer. They came out easily. Now my studs appear too big in diameter to press into the hub.

  11. Ross Wooldridge

    Ross Wooldridge Senior Member FCBO Gold Member

    Messages:
    3,172
    Likes Received:
    998
    Joined:
    Apr 25, 2016
    Location:
    Scotland, Ontario, Canada
    I assume you're talking about your new studs. Check with the parts store by taking your old studs in and comparing them. The studs should fit in the hub holes very tightly, and they should have knurling on them to help seat into the holes. They should press in with some effort.

  12. Lance Whitacre

    Lance Whitacre New Member

    Messages:
    25
    Likes Received:
    11
    Joined:
    May 5, 2017
    Location:
    Cumberland, Md
    Yes, I mean the new ones. They are definitely larger than my old ones. I ordered them from rock auto Wagner BD61253 for front 11" drums. They have a .650 knurl. I will try to take the old one to the local store as you suggest. Thanks

  13. Ross Wooldridge

    Ross Wooldridge Senior Member FCBO Gold Member

    Messages:
    3,172
    Likes Received:
    998
    Joined:
    Apr 25, 2016
    Location:
    Scotland, Ontario, Canada
    Good to know Craig - I've kept my cars leftie equipped...
