    welp finally got headlights working properly...turns out both hidden headlight relays l had were toast....

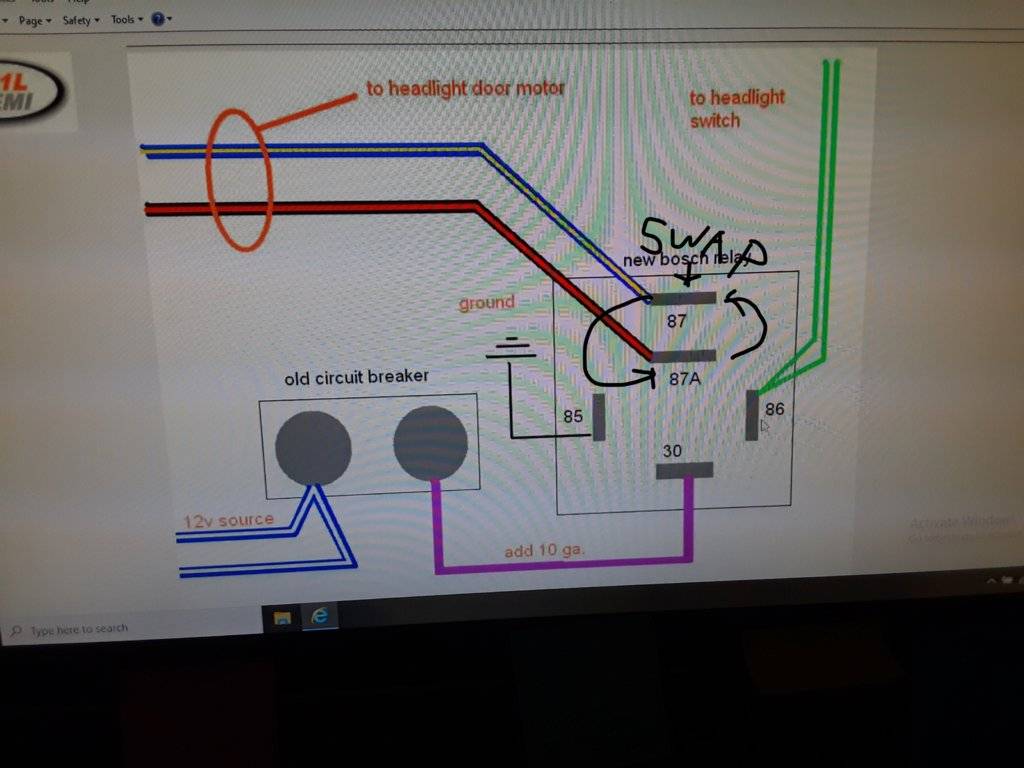

    Picked up a 5 pin bosh style relay and hooked it up as per diagram below and found out l hada swap the two leads to motor over to get it to open properly as doors would open on OFF position and close on on position...anyway was just a matter of switching 2 wires thank god
    anyway blue and yellow wire go to 87A
    black with red tracer to 87

    k....have low and high beams..doors close and open properly...just used one relay and added the 30 amp breaker from original setup....any reason l shouldn't just leave it and call it a daY if it works??? these diagrams with 2 relays are screwing with my brain...relay for high and a relay for low beam????
    personaly am of the mind if it works with one relay just fine don't screw with it...anyway am happy hidden headlights are finally workin..:D

    • Like Like x 7
  2. Dobalovr

    Dobalovr Being on the Cbody diet SUCKS! FCBO Gold Member

    Messages:
    5,520
    Likes Received:
    4625
    Joined:
    Sep 3, 2015
    Location:
    Calgary Alberta
    Glad you got it figured because you will no doubt be called on to convert mine to a bosch setup in the very near future....:poke:

    • Like Like x 3
  3. CanCritter

    CanCritter Senior Member

    Messages:
    4,774
    Likes Received:
    4138
    Joined:
    Apr 9, 2014
    Location:
    alberta
    after two weeks fighting with it all have become quite well associated with all parts of it...practice makes perfect :)

    • Like Like x 3
  4. ArnieJr

    ArnieJr New Member

    Messages:
    25
    Likes Received:
    0
    Joined:
    Nov 2, 2019
    Location:
    NC
    Thanks, I will definitely safe that post. I replaced the Sylvania halogens with the Phillips (I LOVE Phillips products!) filament fixtures, but still nothing. The lights will open, but the motor keeps spinning, then stops when I turn them off; I had hoped it would have at least reversed course. There's something in the motor that's not telling it to stop. I think I may have to pull it out and open it up and see if I broke something in it. I forced one of the doors wile replacing the headlight and may have messed up something. Those pictures will be a HUGE help!

  5. Welder guy

    Welder guy Old Man with a Hat FCBO Gold Member

    Messages:
    7,454
    Likes Received:
    9234
    Joined:
    Dec 30, 2016
    Location:
    Millet Alberta
    If there is one bit of advice I can give to anyone that has hidden headlights it’s :NEVER UNDER ANY CIRCUMSTANCES FORCE THE DOORS IN ANY DIRECTION!!!!! All this will do is elevate you to a whole new level of bigger and harder to repair problems, these motors are durable but they are not indestructible.

  6. Davea Lux

    Davea Lux Old Man with a Hat FCBO Gold Member

    Messages:
    8,600
    Likes Received:
    2078
    Joined:
    Mar 27, 2017
    Location:
    Cornelius Or

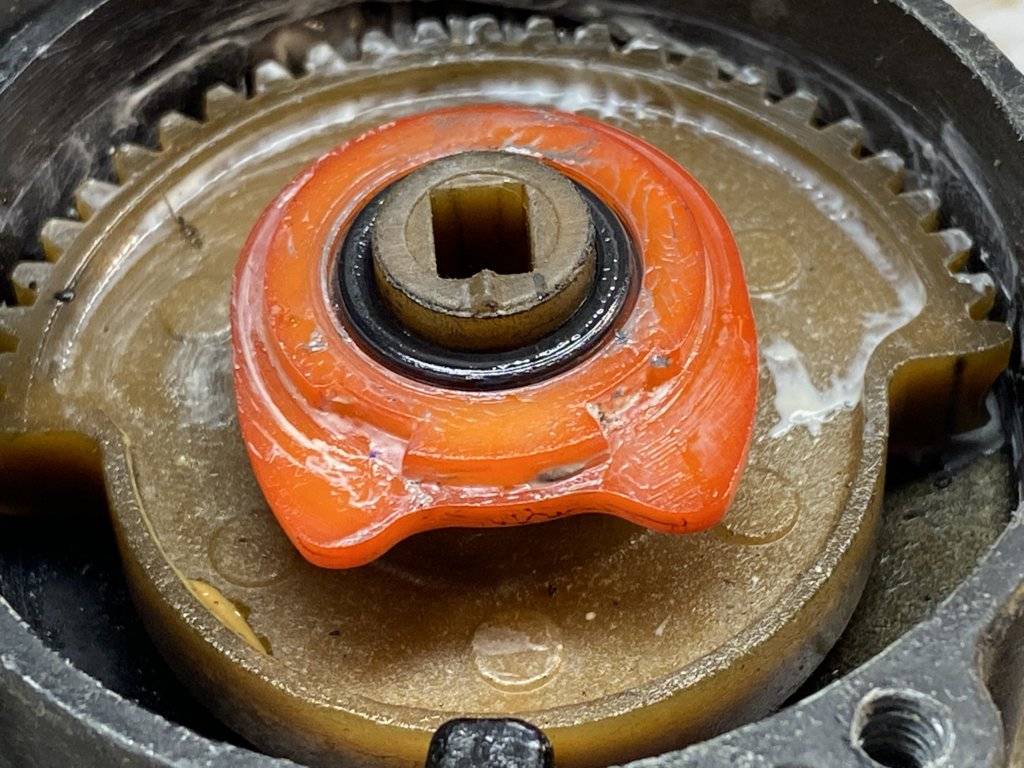

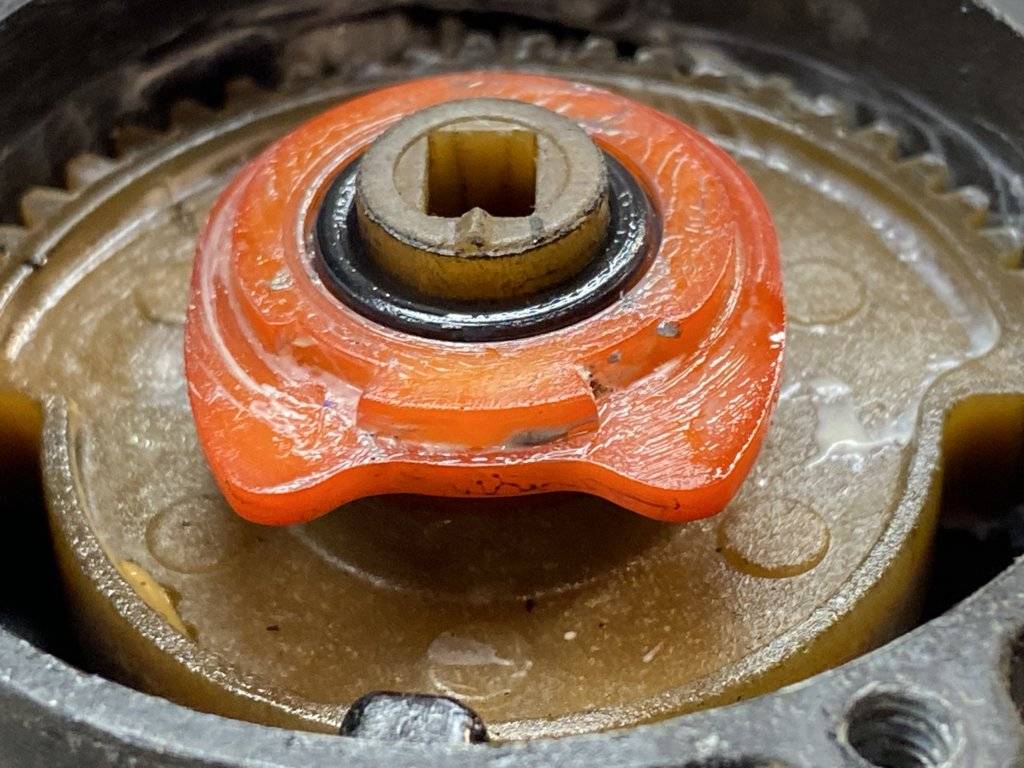

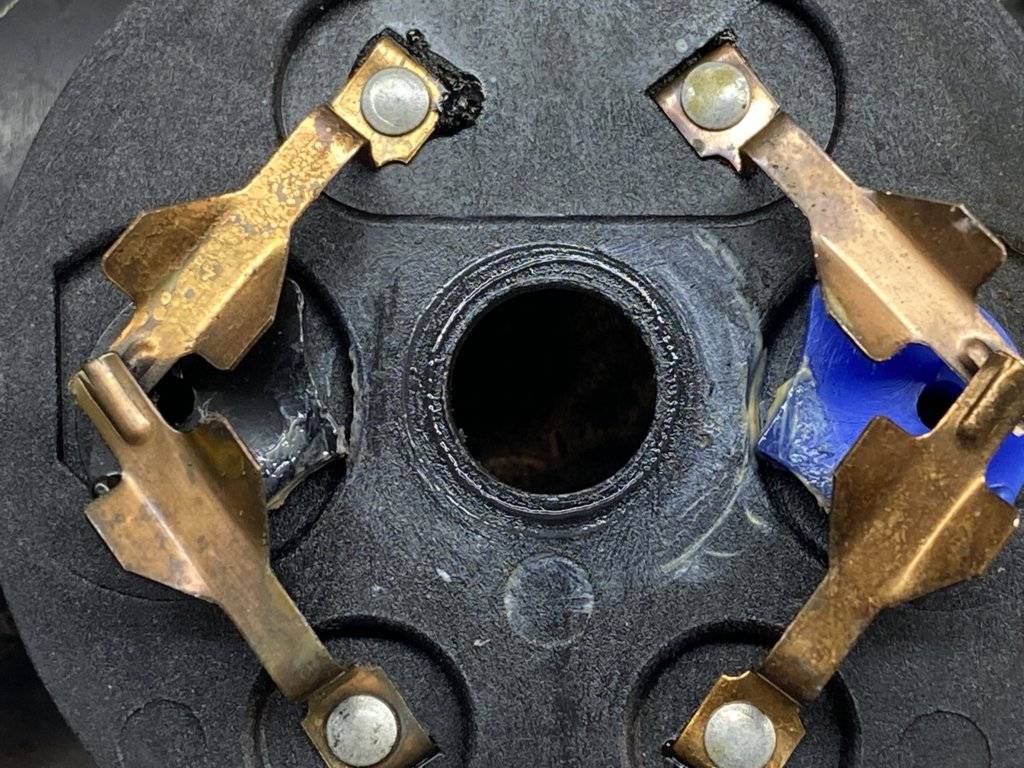

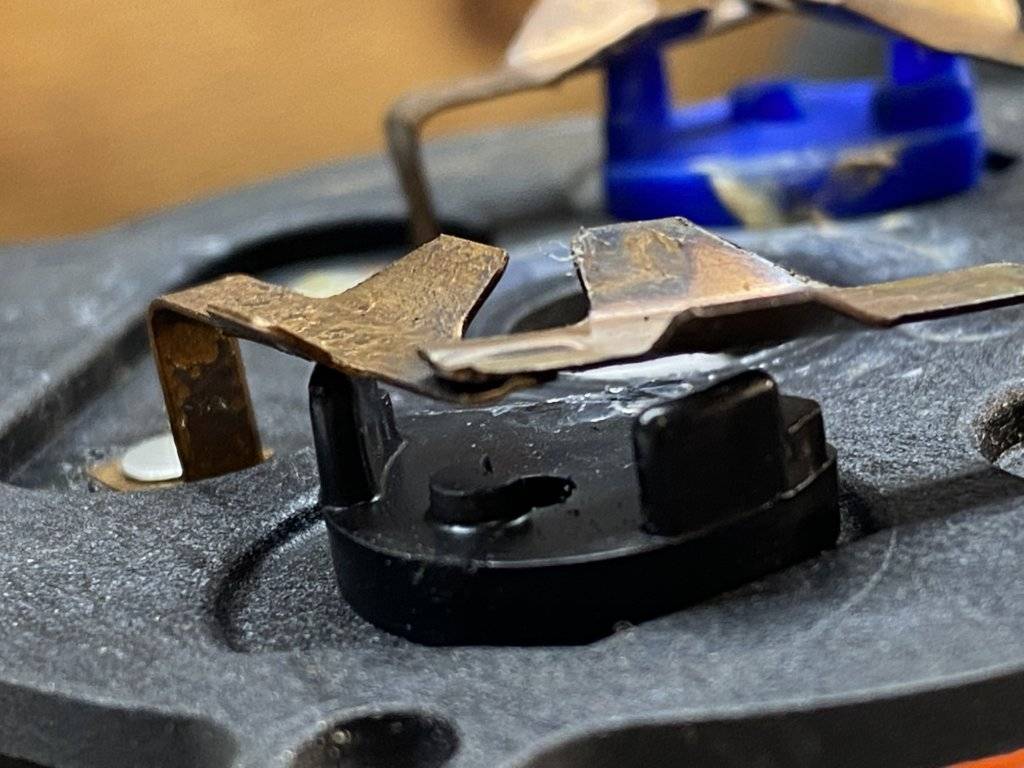

    Usually what you describe is caused by some broken gear teeth on the nylon gear inside the motor assembly. As the door opens most of the way, the drive pinion starts to skip because the last few teeth on the nylon gear have stripped or broken off and the gear can not move far enough disengage the limit switch. There are index lines on the gear hub (Gear hub is the rectangular hole in the gear that the shaft for the headlight doors goes thru) and the gear case, be sure to line these up before removing the black plastic cover for the gear or damage to the limit switches will occur. (See post #27 for a photo) Not a good idea to take the motor barrel loose unless you are very good with motors. The brush holder for the motor is easily broken and it is not a reproduction item.

    Dave

  7. Welder guy

    Welder guy Old Man with a Hat FCBO Gold Member

    Messages:
    7,454
    Likes Received:
    9234
    Joined:
    Dec 30, 2016
    Location:
    Millet Alberta

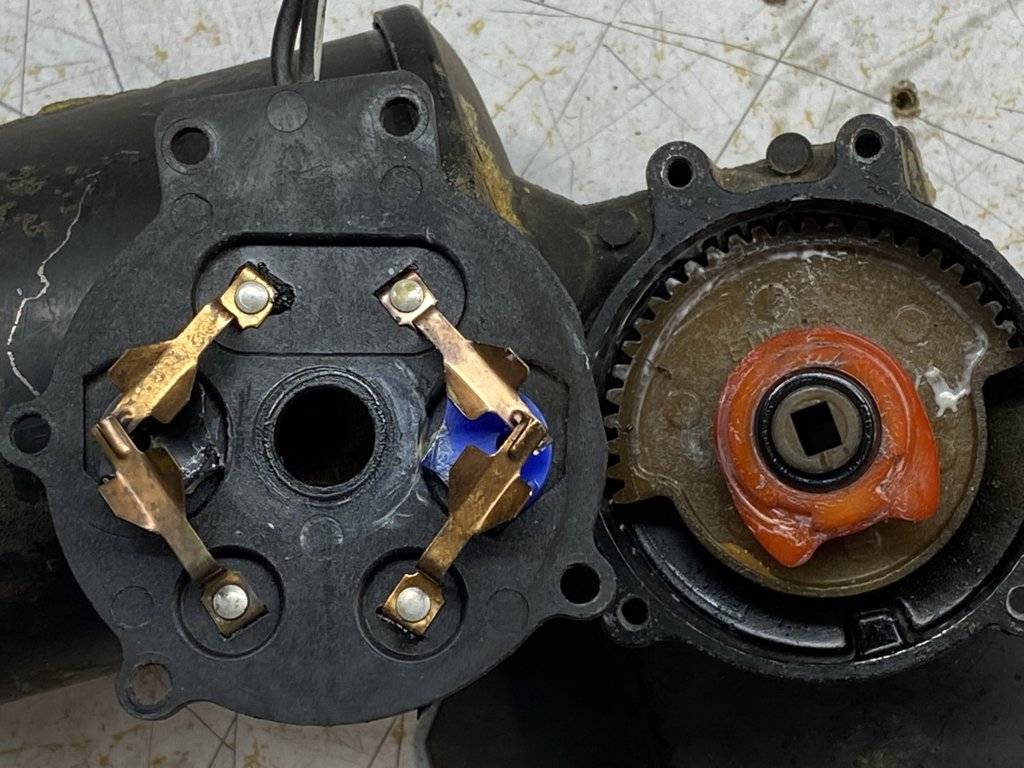

    The first 2 pictures in post 36 shows the index marks Davea Lux is talking about, the rest of the pictures are what the gear looks like when the gear housing is taken apart in that position. Only take the head apart when the index marks are in that position.

  8. Welder guy

    Welder guy Old Man with a Hat FCBO Gold Member

    Messages:
    7,454
    Likes Received:
    9234
    Joined:
    Dec 30, 2016
    Location:
    Millet Alberta

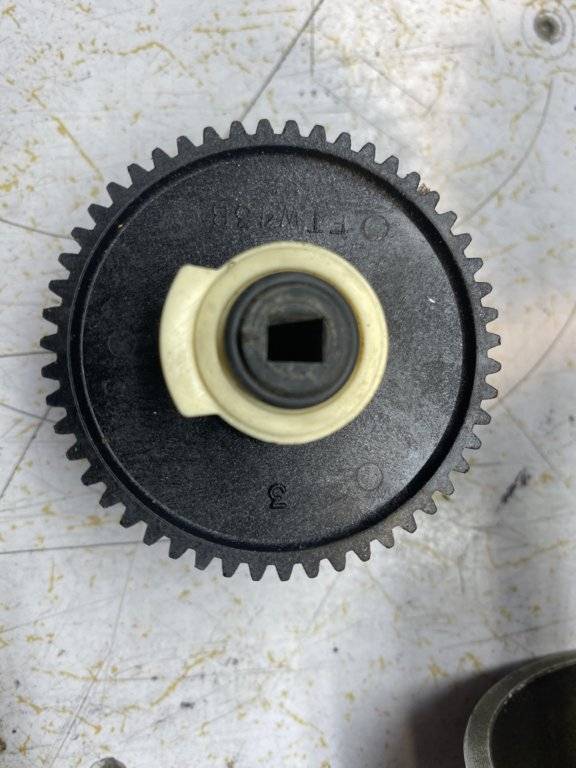

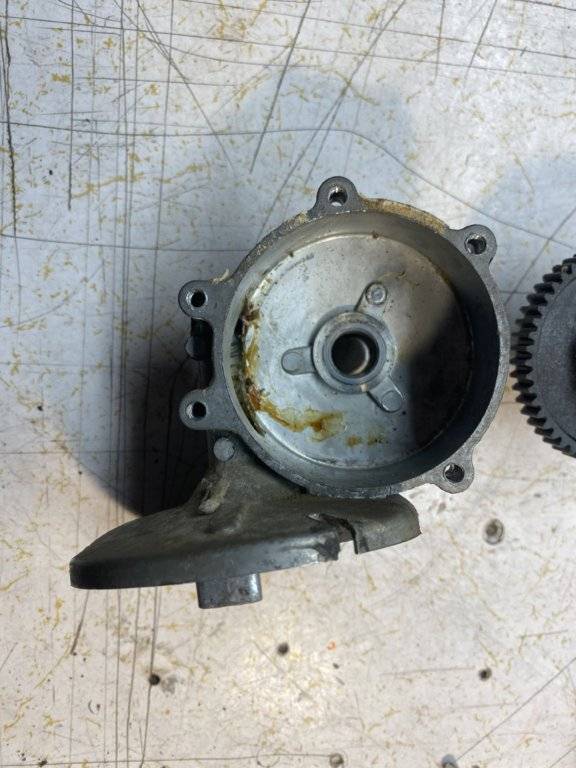

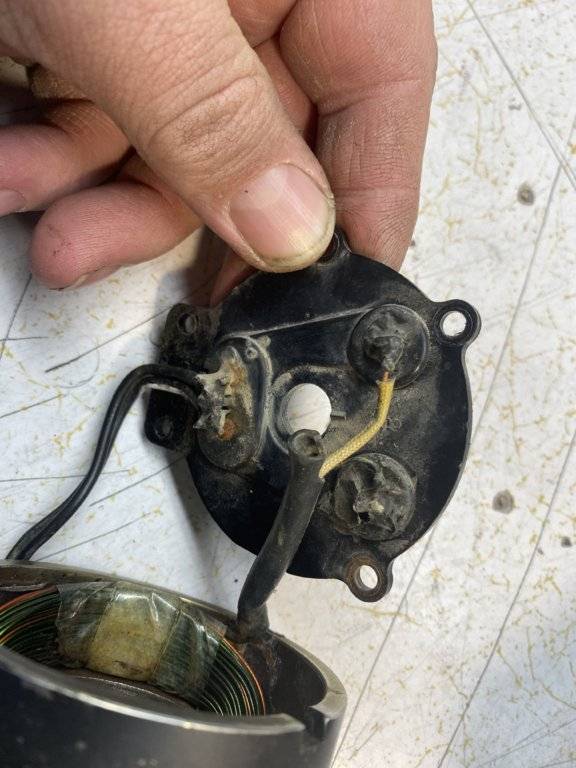

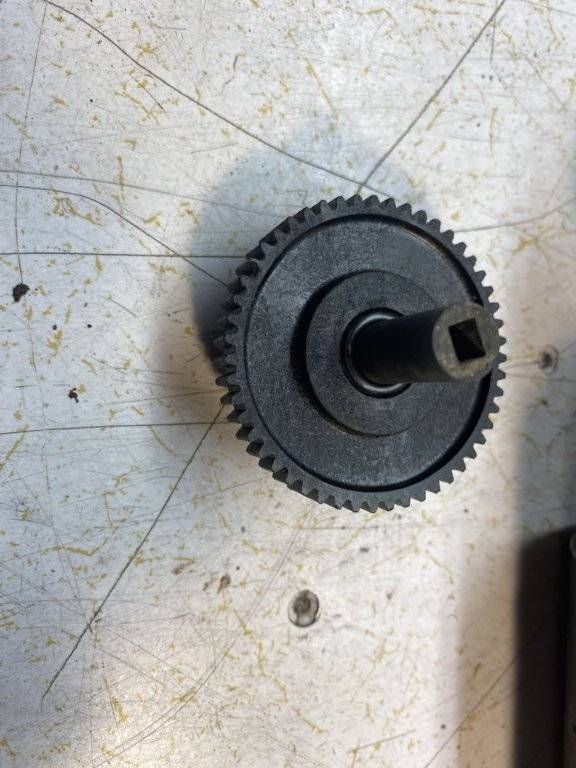

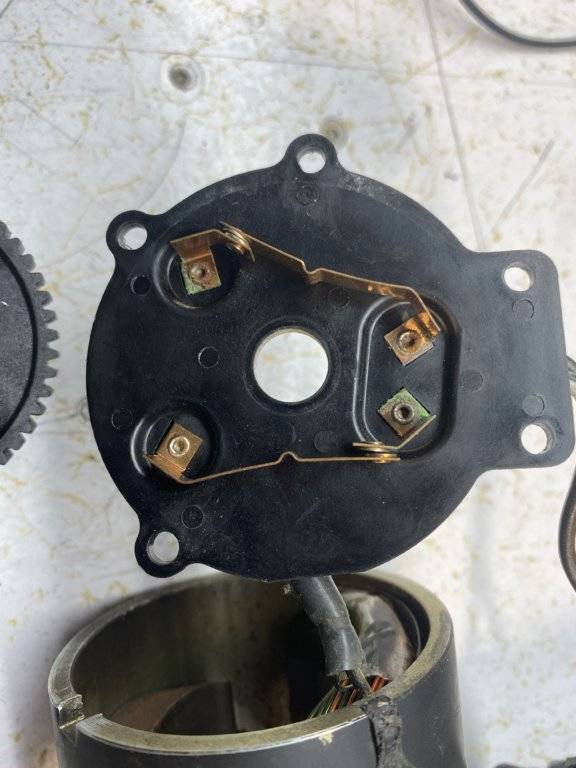

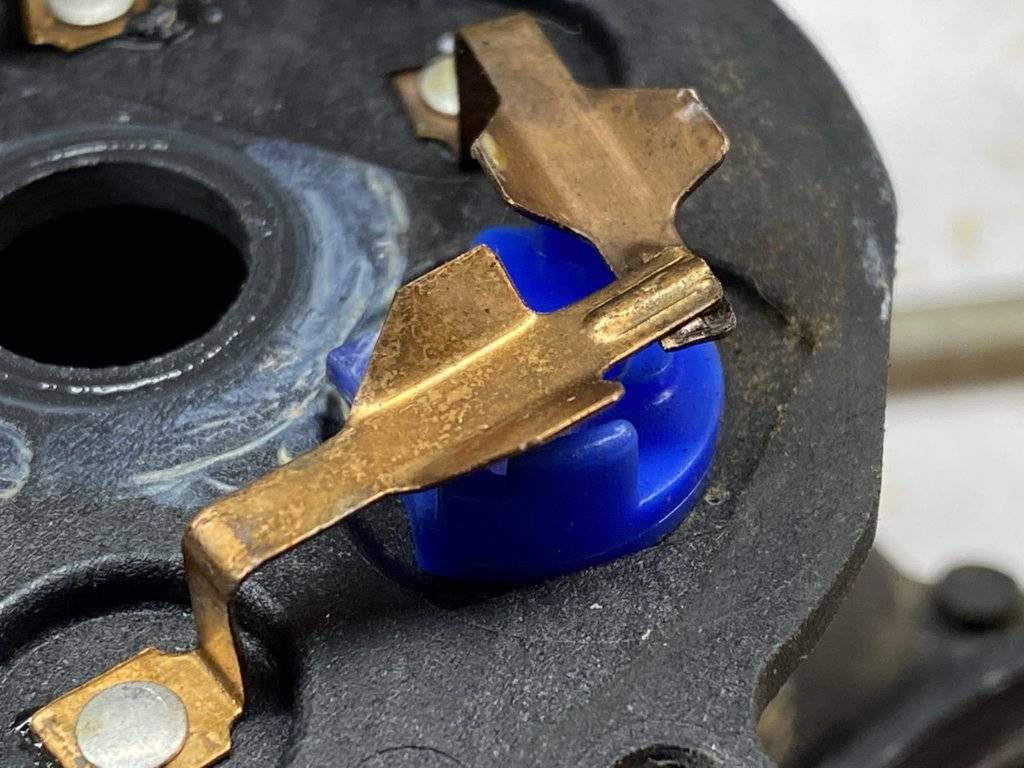

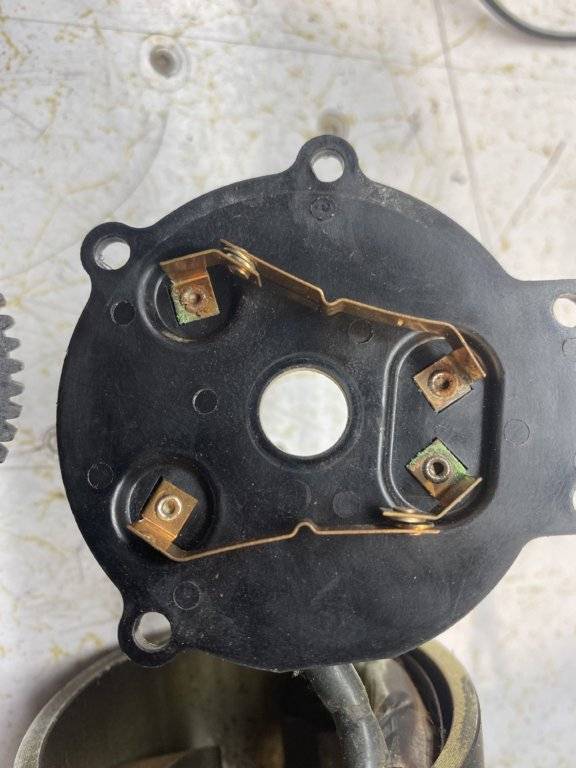

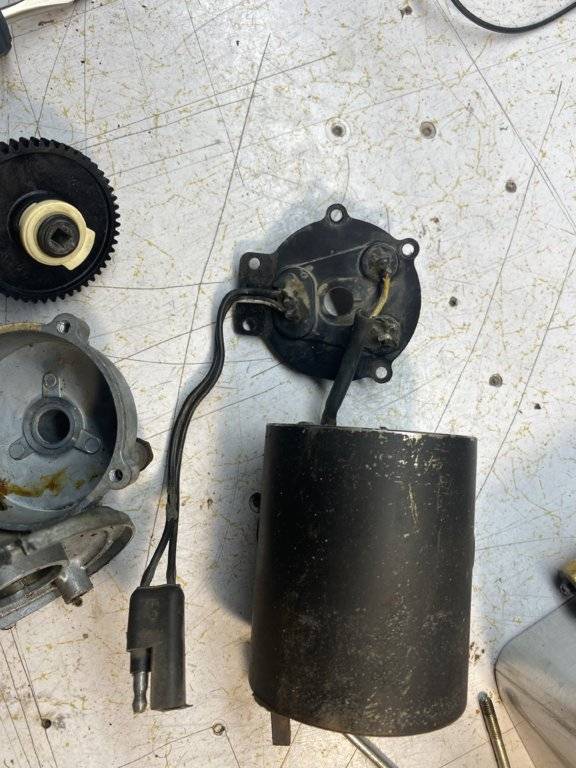

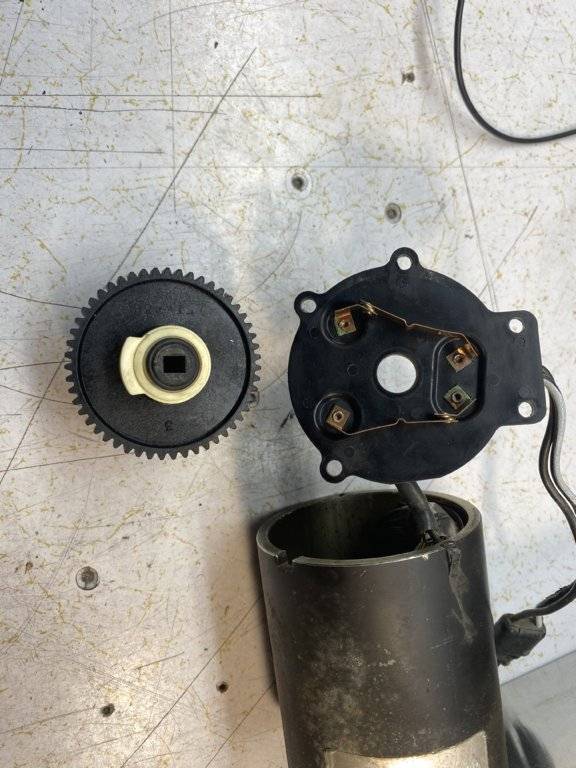

    Here are some pictures of a second motor I had , it had a different style of gear. The gear was good and points were not broken, that part of the motor worked fine . This motors problem was it would not turn because of rust on the shaft in the bottom bushing of the motor , a common issue with these motors . 06E136C8-FB81-4377-90A8-FB56275F8CDE.jpeg E26ED2D2-35E6-4FF8-A689-A91565E719B3.jpeg A5B29500-C59F-4676-8C48-03469B2881A1.jpeg A9158F30-D9EC-4FAB-8F9D-4872FCEFA8DA.jpeg 8F42345F-71F0-4CEC-A08D-07A6659D4ED9.jpeg 861E1E2A-7C44-42D4-A7E4-BEF05C14E88D.jpeg 73EAB141-5EAB-4B0E-AF3C-314FD17242F1.jpeg DEA1BC61-0CBC-4366-BB05-41B9C5B4EAF2.jpeg

    Last edited: Feb 17, 2020
    • Like Like x 1
  9. CanCritter

    CanCritter Senior Member

    Messages:
    4,774
    Likes Received:
    4138
    Joined:
    Apr 9, 2014
    Location:
    alberta

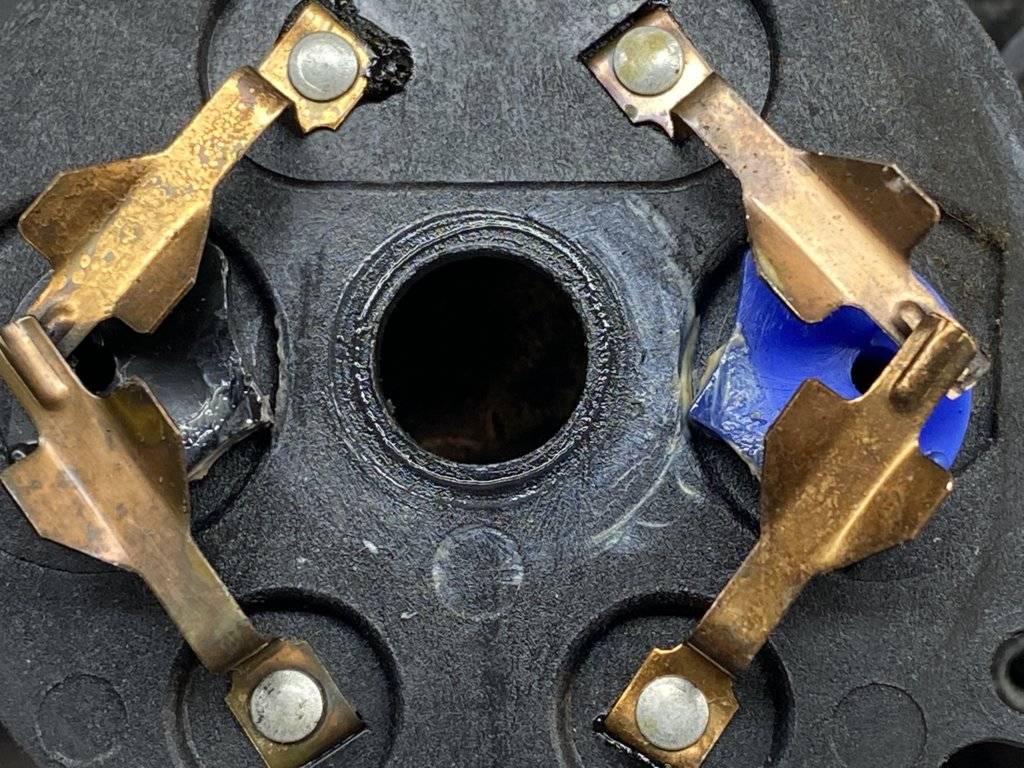

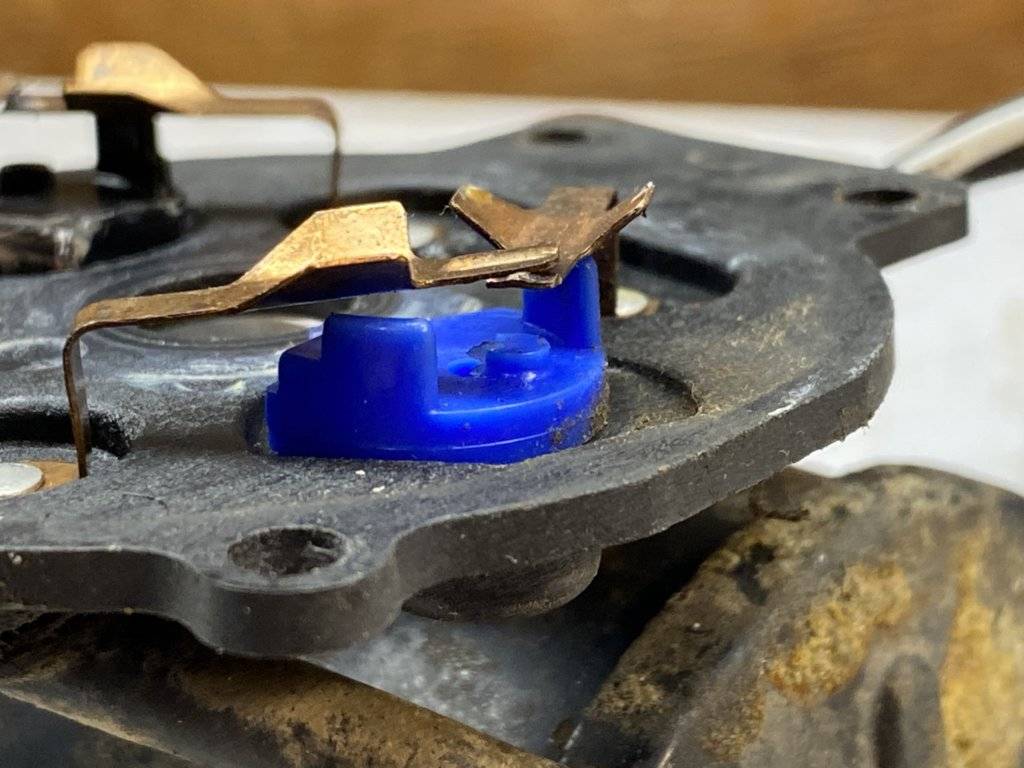

    like that motor better...contacts seem simpler to deal with..different head though with no stop and different gearing and cam.....wonder if that's a newer design?

  10. Welder guy

    Welder guy Old Man with a Hat FCBO Gold Member

    Messages:
    7,454
    Likes Received:
    9234
    Joined:
    Dec 30, 2016
    Location:
    Millet Alberta

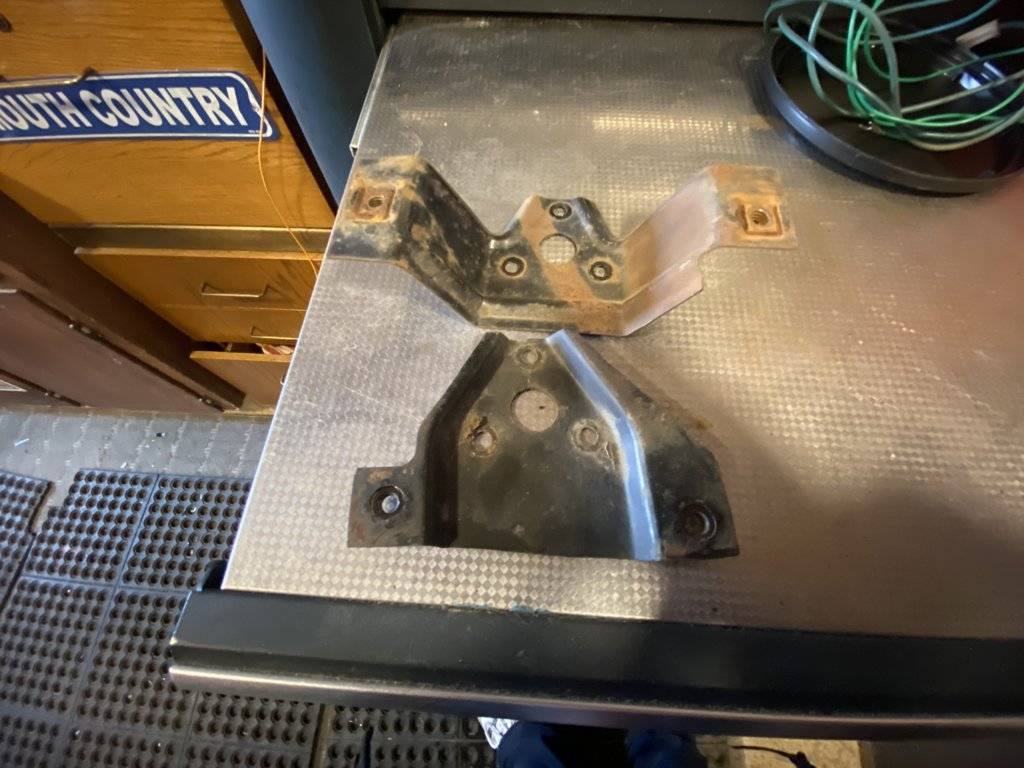

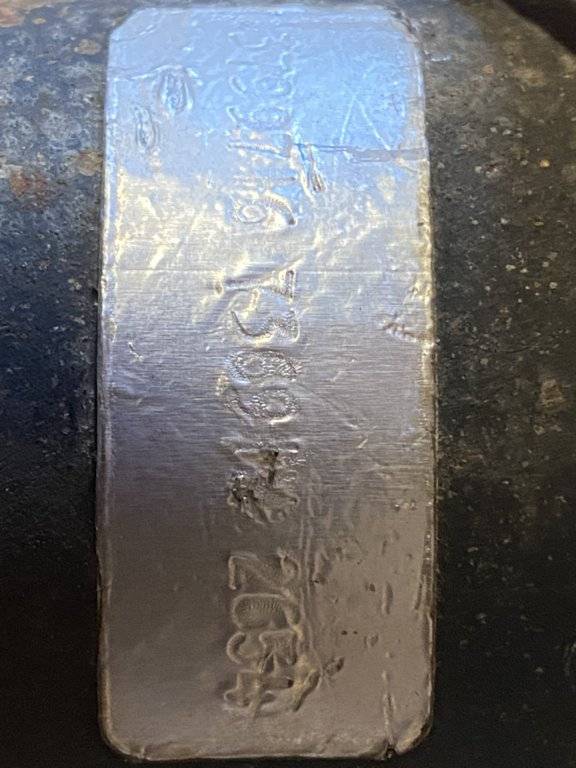

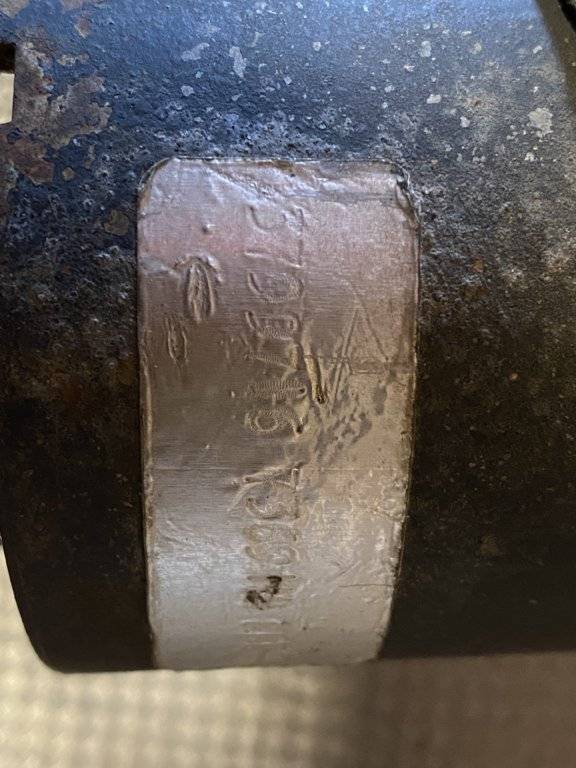

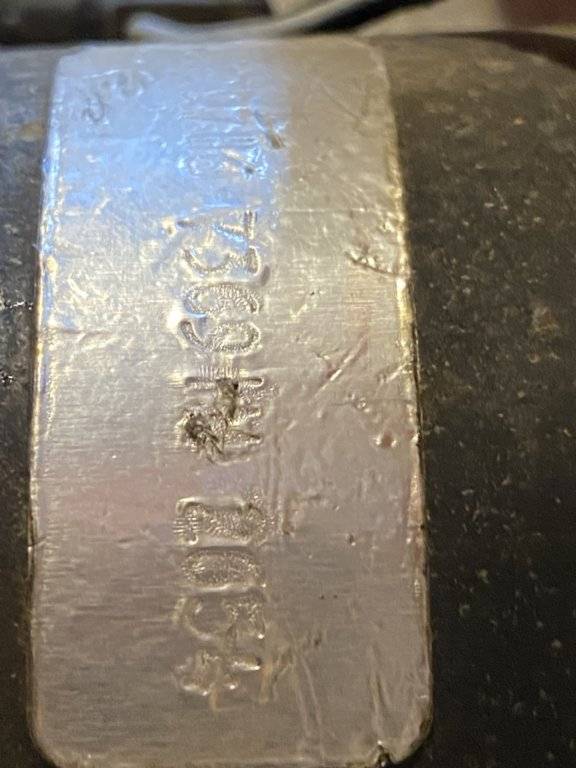

    74964AE0-53AC-49A2-BED6-4F723D0565C6.jpeg 79B21F23-F61F-42D2-8FF2-D118A942C18D.jpeg 01EAF7DA-07E6-4002-87C4-677E1C247DD9.jpeg B74103D8-8C79-416D-ACE7-7F77E6C598D1.jpeg 78F1640B-769B-4C1E-9895-9B73D0AFB271.jpeg 9998D572-FDC4-48CF-9F96-E2DD06DD480F.jpeg C78B51AA-BE44-4F24-BCC3-5E849812D6D2.jpeg A6EC4E2A-AFD1-44E8-9853-D4A9E43D2573.jpeg This design is a lot easier to work on! I’m not sure of the design date . Here are some pictures of the only numbers I could find on it along with a couple mounting brackets that were in a box of parts both of the motors came here in. The smaller bracket is what was on this motor when I got it.

    • Like Like x 1
  11. ceebuddy

    ceebuddy Well-Known Member

    Messages:
    823
    Likes Received:
    412
    Joined:
    May 13, 2014
    Location:
    Frankfurt, Germany
    Were there any models from Chrysler Corporation with hidden headlights after the 1978 New Yorker? What about the Dodge Magnum with its translucent covers?

  12. Dobalovr

    Dobalovr Being on the Cbody diet SUCKS! FCBO Gold Member

    Messages:
    5,520
    Likes Received:
    4625
    Joined:
    Sep 3, 2015
    Location:
    Calgary Alberta
    1981-83 Imperial for one

    • Thanks! Thanks! x 1
  13. 300rag

    300rag It's Not Going to Shift Itself FCBO Gold Member

    Messages:
    13,301
    Likes Received:
    15074
    Joined:
    Dec 4, 2010
    Location:
    Calgary, Alberta, Canada
    '88-93 New Yorker


    • Like Like x 1
    • Thanks! Thanks! x 1
  14. 1970cat

    1970cat Senior Member FCBO Gold Member

    Messages:
    3,473
    Likes Received:
    1520
    Joined:
    Dec 10, 2012
    Location:
    central ny
    87-92 lebaron

    • Thanks! Thanks! x 1
  15. twostick

    twostick Senior Member

    Messages:
    2,367
    Likes Received:
    1017
    Joined:
    Dec 13, 2012
    Location:
    Beautiful Downtown Roebuck Ont.
    2012-06-22_17-36-20_413.jpg 79-81 R Body New Yorker.

    Kevin

    • Thanks! Thanks! x 1
  16. D Ray's Alien

    D Ray's Alien Member

    Messages:
    52
    Likes Received:
    115
    Joined:
    Jul 15, 2018
    Location:
    63025
    Hey gang, Does anyone know who rebuilds these motors? I thought I saw that someone did but can't find the thread. Thanks,

  17. Dobalovr

    Dobalovr Being on the Cbody diet SUCKS! FCBO Gold Member

    Messages:
    5,520
    Likes Received:
    4625
    Joined:
    Sep 3, 2015
    Location:
    Calgary Alberta
    Topher Mcginnis is your man

    topher@headlightmotorman.com

    • Like Like x 2
    • Agree Agree x 1
  18. Stoffauge

    Stoffauge Member

    Messages:
    114
    Likes Received:
    14
    Joined:
    Feb 6, 2020
    Location:
    Germany
    I´d like to reactivate this "old but super gold" thread and add an issue I have with my headlight motor. It is kind of mentioned above but not 100% same.

    All lights work.

    My motor opens the doors (with a tiny bit of help because of broken teeth) and closes (without help). BUT: It keeps spinning after it CLOSED the doors. Is it just because of the broken teeth and I have to buy new cam and gear from ebay and thats it? Or are the stop limits broken somehow (how to replace if?) Because all in all it sounds like a mechanically issue.

  19. Welder guy

    Welder guy Old Man with a Hat FCBO Gold Member

    Messages:
    7,454
    Likes Received:
    9234
    Joined:
    Dec 30, 2016
    Location:
    Millet Alberta
    It’s hard to know exactly what is causing your issues with out knowing what style of gear you have. You need to remove the motor and carefully take it apart and take a lot of good close up pictures of all the parts. Then it should be no problem fixing the issue. Just guessing I would say The cam is not hitting the points that break The electrical circuit and stop the motor from turning off

  20. Stoffauge

    Stoffauge Member

    Messages:
    114
    Likes Received:
    14
    Joined:
    Feb 6, 2020
    Location:
    Germany

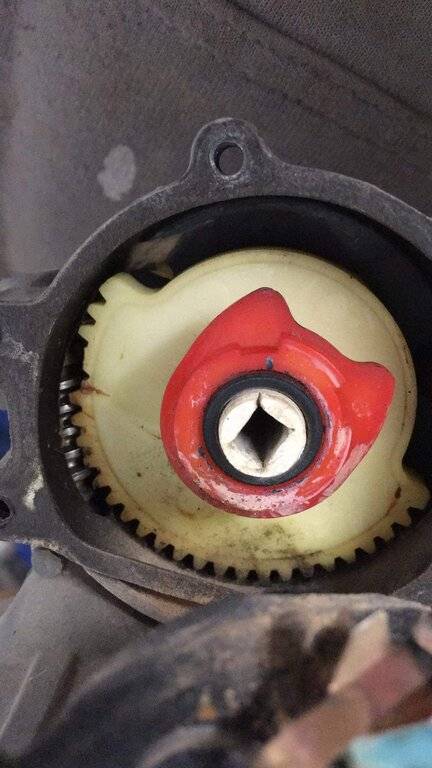

    Took it apart many times to clean the bearing and make it run again etc. I do have a red cam with a "half rounded" gear. The teeth on the far let side are missing so it could be the issue. Bec. of these teeth missing the "metal-snail-thread-driver-thing that runs the gear) can´t drive the gear on the far end on the stop limits to make the cam cut the contacts. May I be right?
