Carter AVS Setup & tuning book/guide?

marty koirtyohann

Active Member
Joined
Aug 2, 2017
Messages
391
Reaction score
111
Location
washington,mo.
Automotive technology.
ok like a trade school . did the teach u how o set points or just how to scan the computer the point ignition is the basis of all ignition systems but most say its obsolete & u will neer c it . well they r wrong many cars still have points ignition 1972 was the cut off for change over to electronic (control module / box on the fire wall or metal inner fender well


marty koirtyohann

Active Member
Joined
Aug 2, 2017
Messages
391
Reaction score
111
Location
washington,mo.
Sorry about you loss sir,

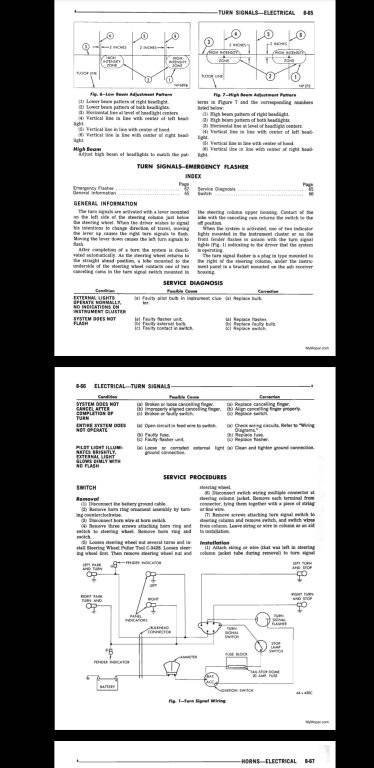

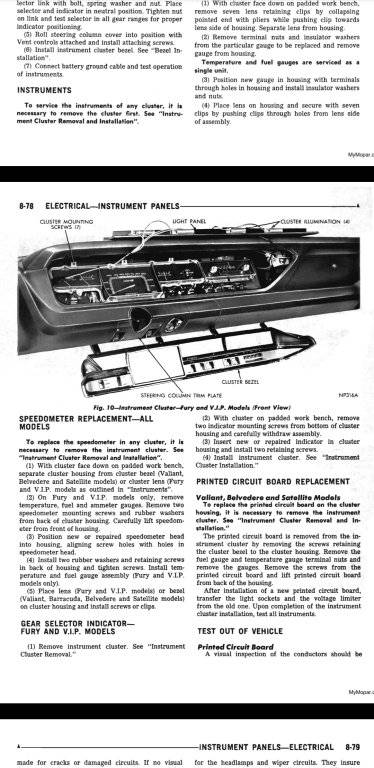

Here's the pictures which seem specific year enough.

View attachment 556508

View attachment 556509
i dont have any pics from my 72 full-size book all i have is from my 87 dodge truck book . now from what i c it looks ok now dose this have a full wiring lay out of the entire car ?

but a paper book is soo much better u can take the book yo te car its kind of hard to take a laptop to it + if u knock th computer off the fendr &S it hits rhe floor its broken while s book it wil not hurt .


marty koirtyohann

Active Member
Joined
Aug 2, 2017
Messages
391
Reaction score
111
Location
washington,mo.
i dont have any pics from my 72 full-size book all i have is from my 87 dodge truck book . now from what i c it looks ok now dose this have a full wiring lay out of the entire car ?

but a paper book is soo much better u can take the book yo te car its kind of hard to take a laptop to it + if u knock th computer off the fendr &S it hits rhe floor its broken while s book it wil not hurt .
do u have any retired dodge guys or retired mopar drag racers near u ? if u do maybe they will help u ou with te linkage issues & steer u in the right direction there r a lot of Victory Nostalgia super stock races in texas & most save everything most dont pitch anything . they mave have just what u need . if u was closer we could go to clay&sons llc resteration yard & if clay was ere i know he would show how to set it up
well take lots of Alka-Seltzer Plus severe cold and flu medicine drink lots of orange juice & sleep rhe Alka-Seltzer Plus severe cold and flu medicine + r u taking vitamin D3 , vitamin E& C 1000 IEU, & zinc all will fight the bug + the vitamins & zinc will build yur immune system

Joined
Apr 22, 2022
Messages
157
Reaction score
36
Location
Fairview, TX
do u have any retired dodge guys or retired mopar drag racers near u ? if u do maybe they will help u ou with te linkage issues & steer u in the right direction there r a lot of Victory Nostalgia super stock races in texas & most save everything most dont pitch anything . they mave have just what u need . if u was closer we could go to clay&sons llc resteration yard & if clay was ere i know he would show how to set it up

well take lots of Alka-Seltzer Plus severe cold and flu medicine drink lots of orange juice & sleep rhe Alka-Seltzer Plus severe cold and flu medicine + r u taking vitamin D3 , vitamin E& C 1000 IEU, & zinc all will fight the bug + the vitamins & zinc will build yur immune system
That's what I have been doing today, getting rest laying in bed.

unfortunately no one in my area touches, let alone messes with chrysler C bodies.

Joined
Apr 22, 2022
Messages
157
Reaction score
36
Location
Fairview, TX
ok like a trade school . did the teach u how o set points or just how to scan the computer the point ignition is the basis of all ignition systems but most say its obsolete & u will neer c it . well they r wrong many cars still have points ignition 1972 was the cut off for change over to electronic (control module / box on the fire wall or metal inner fender well
No, this school did not teach me anything of the "old" tech like gapping and setting points.

I self taught it to myself.

Joined
Apr 22, 2022
Messages
157
Reaction score
36
Location
Fairview, TX

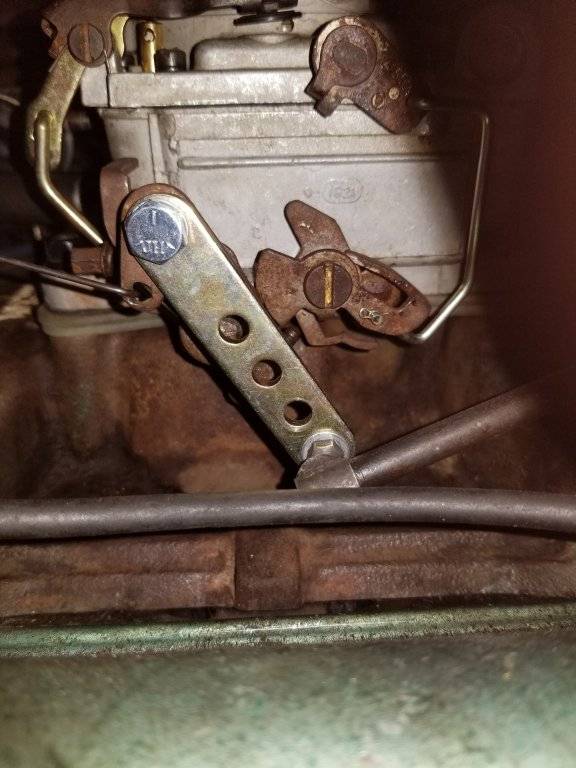

Thought I should give an update after tinkering and testing with the 2 barrel linkage that goes to the kickdown lever.

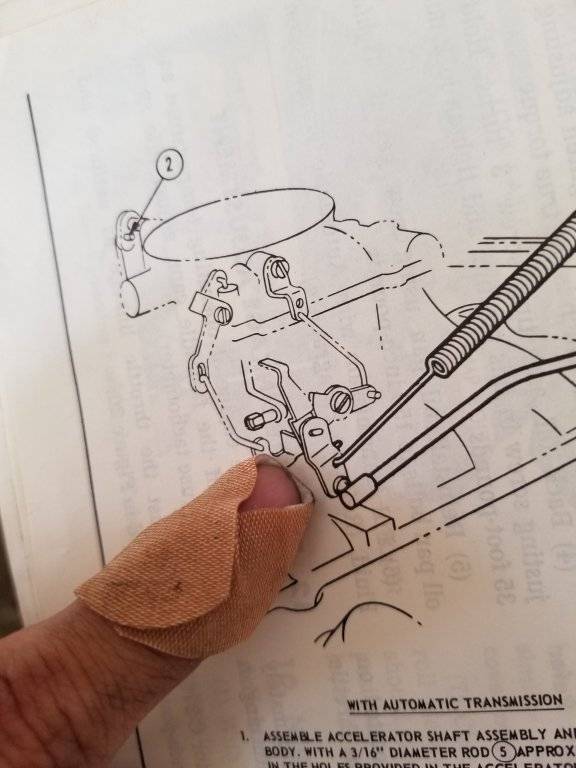

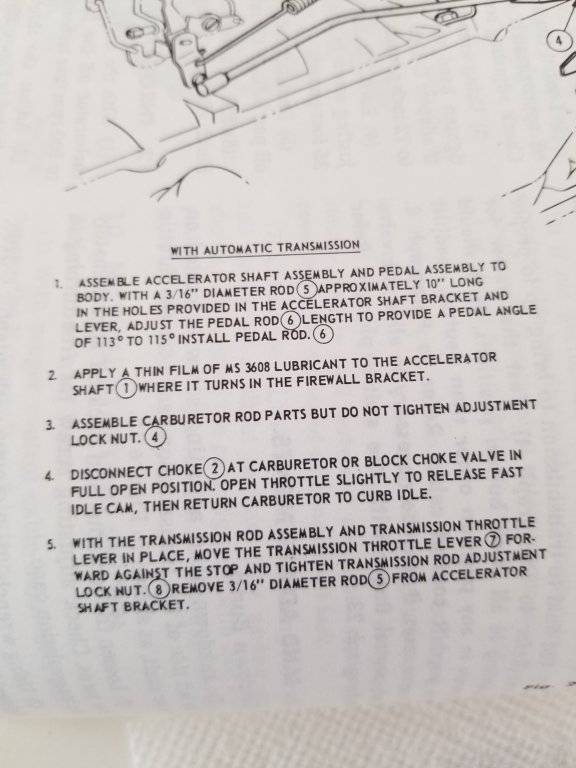

Decided that a kit (Lokar, or a 4 barrel linkage) was not necessary in my case and I just needed to follow the diagram on the 64' FSM.

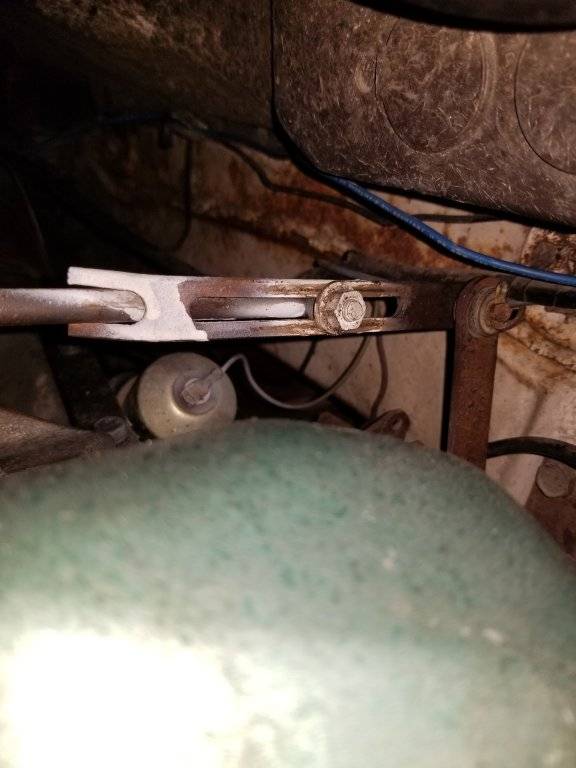

Used the edelbrock AT extension bar, held the throttle to WOT then slid the throttle linkage forward, gave some slack near the kickdown lever just enough to put it at rest when throttle was at idle.

Also the kickdown lever was pulled forward before tightening the adjustment.

Tightened down the adjusting nut on the throttle linkage.

Shift point is a little higher than stock, and the "shift feel" is a bit on the soft side. "Shifts are less jerky then when the 2 barrel was on"

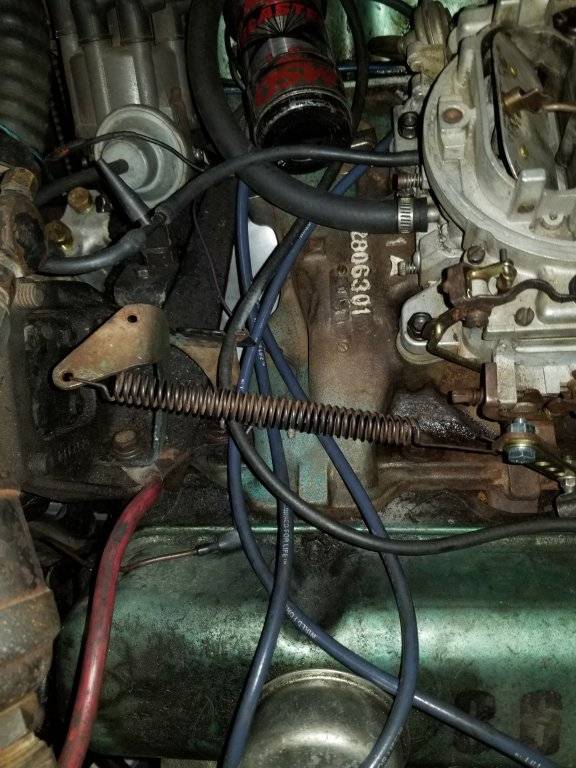

Moved the throttle return spring and the bracket to the front of the carburetor, behind the A/C compressor.

I decided to mimick how the AFB linkage was mounted using the 64' FSM layout.
Not different at all while using an AVS.
(AFB on the FSM was using the same throttle linkage)

Car sounds great with the 4 barrels opening up, sounds just like the Quadrajets and Thermoquads.















marty koirtyohann

Active Member
Joined
Aug 2, 2017
Messages
391
Reaction score
111
Location
washington,mo.
YES THAT SHOULD WORK OK FOR U . IM GLAD U WORKED IT OUT . NOW PLEA FO MY SACK post a you vid on ig running &S driving like i dod for u/ have fun with the car . i know rgey can be a pain to get set up
old mopar guy
martin
